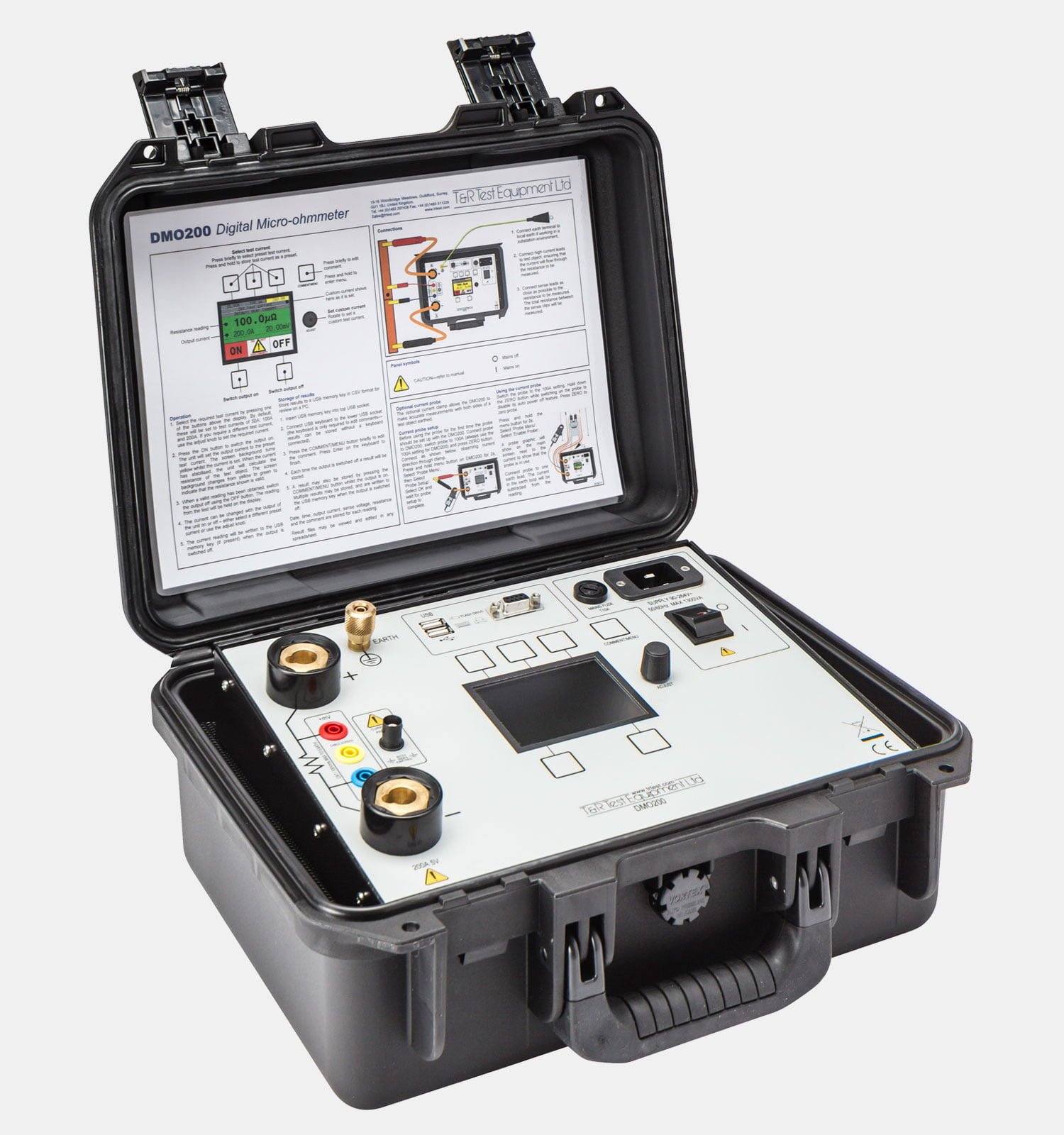

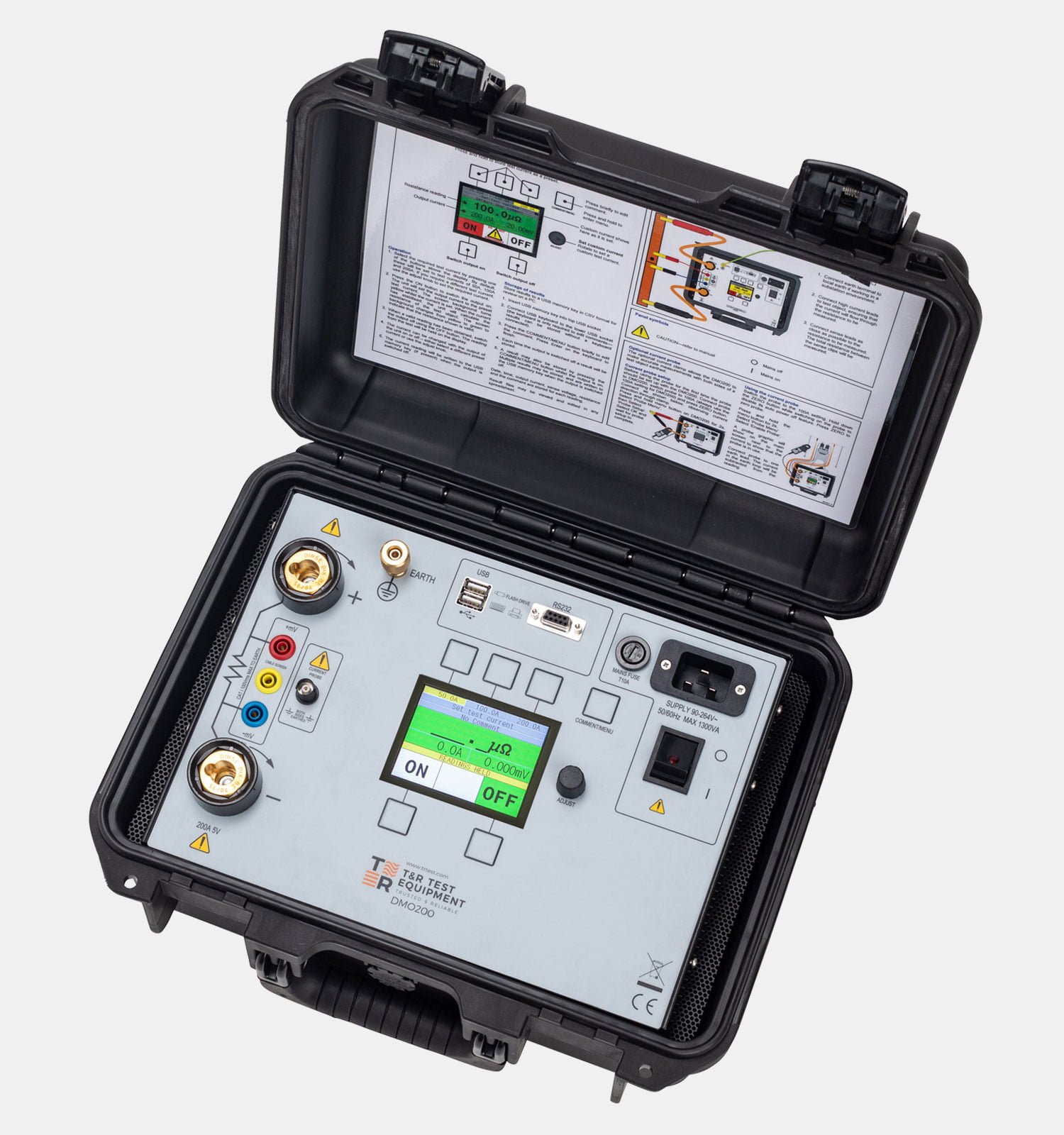

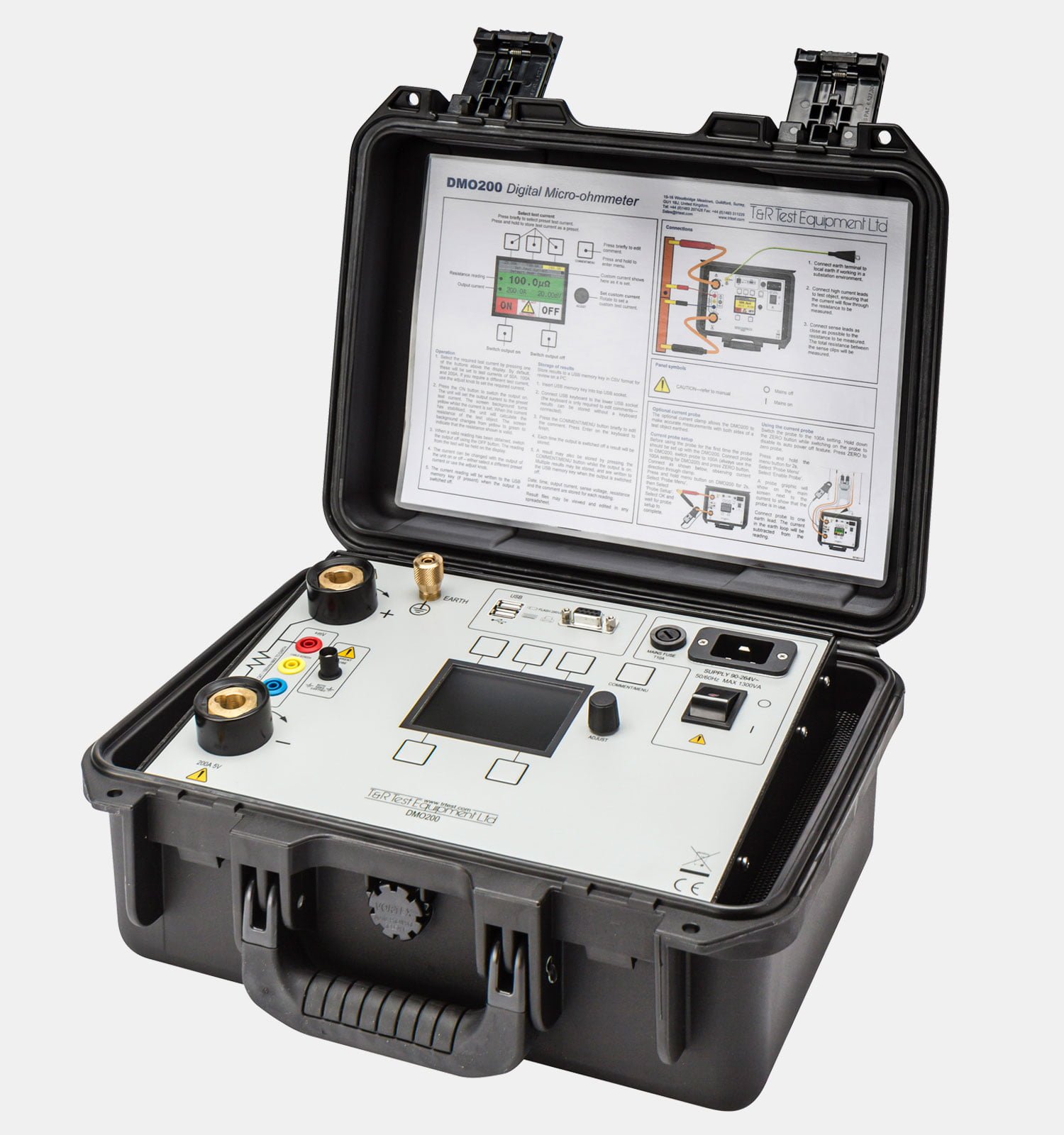

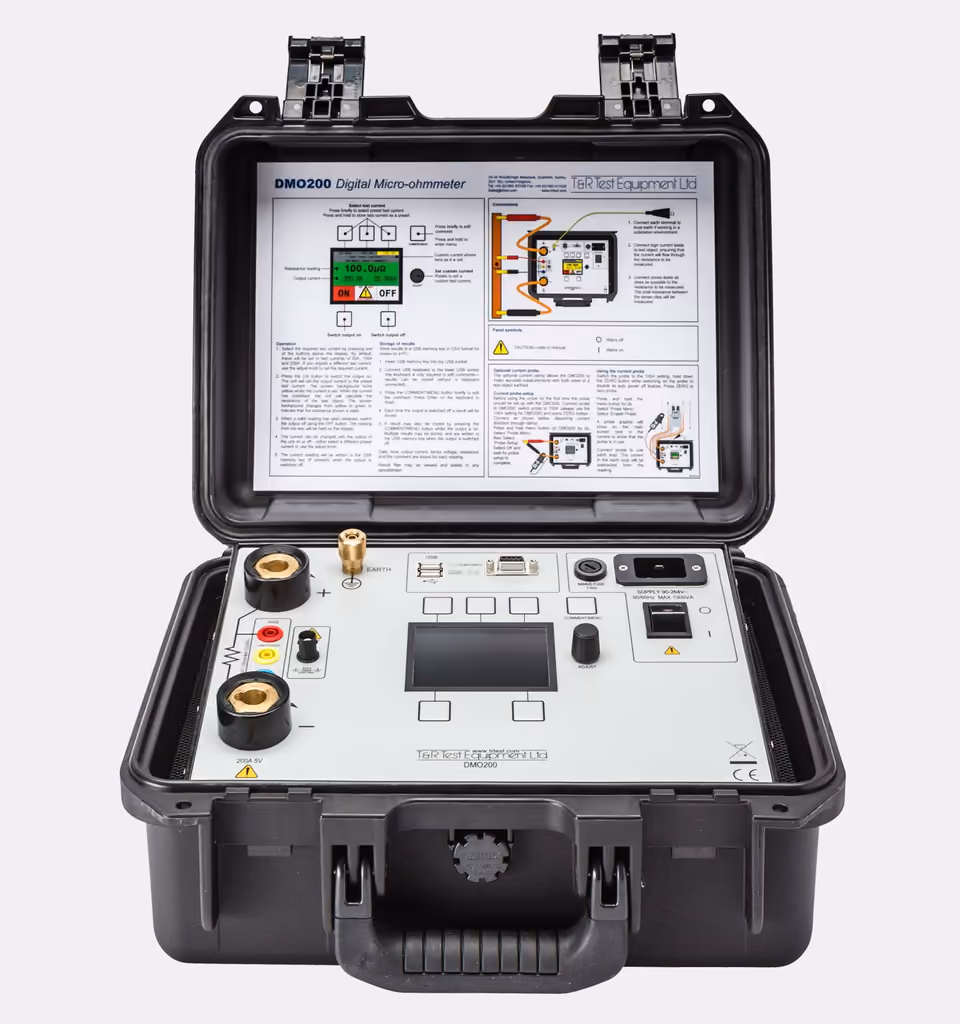

DMO200N Digital Micro-Ohmmeter
200 A DC micro-ohmmeter in the DMO200N configuration for contact and joint resistance measurement in commissioning and production environments.
Measures very low resistances at test currents up to 200 A DC with 0.1 µΩ resolution, aimed at circuit-breaker contacts, switch panels, isolators and busbar joints.
Presettable test currents let commonly used values be stored and recalled, which shortens repeat testing across a panel line.
Catalog pricing
Request quotePricing confirmed by sourcing
Request pricing and availability for this item. Z Power Electric can confirm lead time, sourcing options, and part details.
- 30-day returnsOn standard orders
- 24-hour quoteFrom our sourcing team
- Independent sourcingNo territory limits
- Obsolete + backorderSpecialists since day one
Talk to a sourcing expert
Mon - Fri 9:00 AM - 4:30 PM PST
Sat - Sun Closed
Product overview
Universal 90–264 V supply, thermal and over-current protection, and an IP54 rating suit it to both workshop and site use.
Specifications
- Part Number
- DMO200N
- Brand
- T&R Test Equipment
- Weight
- 6.9 kg
- Dimensions
- 360 × 290 × 165 mm
- Supplied Accessories

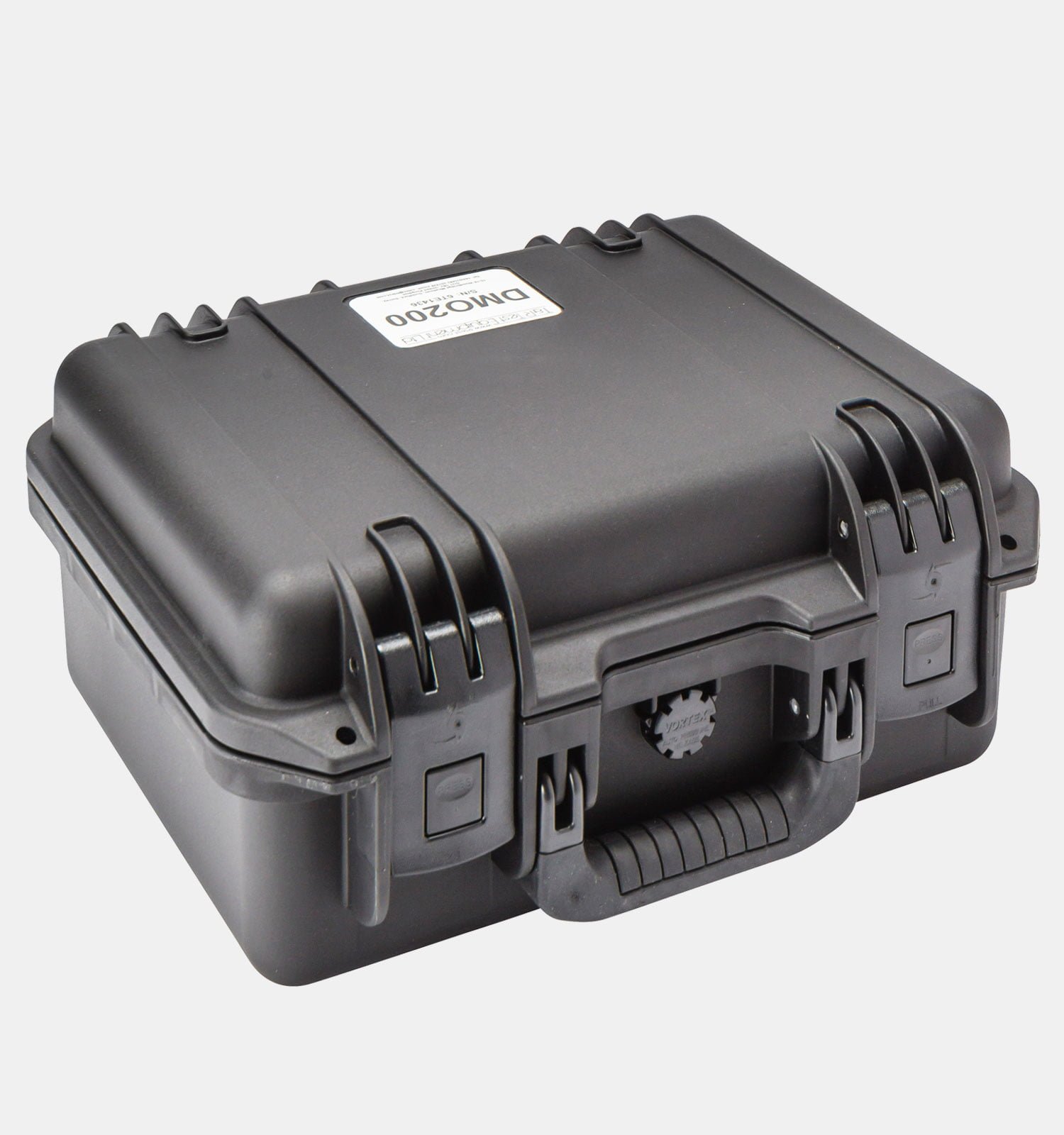

- User manual Calibration certificate Spare fuse Mains lead Output lead set Earth lead with croc clip USB key USB keyboard Orange carry case
Key features
- As per DMOO200 Test System but supplied with Nevada Crocodile Clip 3m output lead set
- Ultra lightweight (6.9kg)
- 1-200A DC test current with <2.5% ripple
- 0.1μΩ resolution

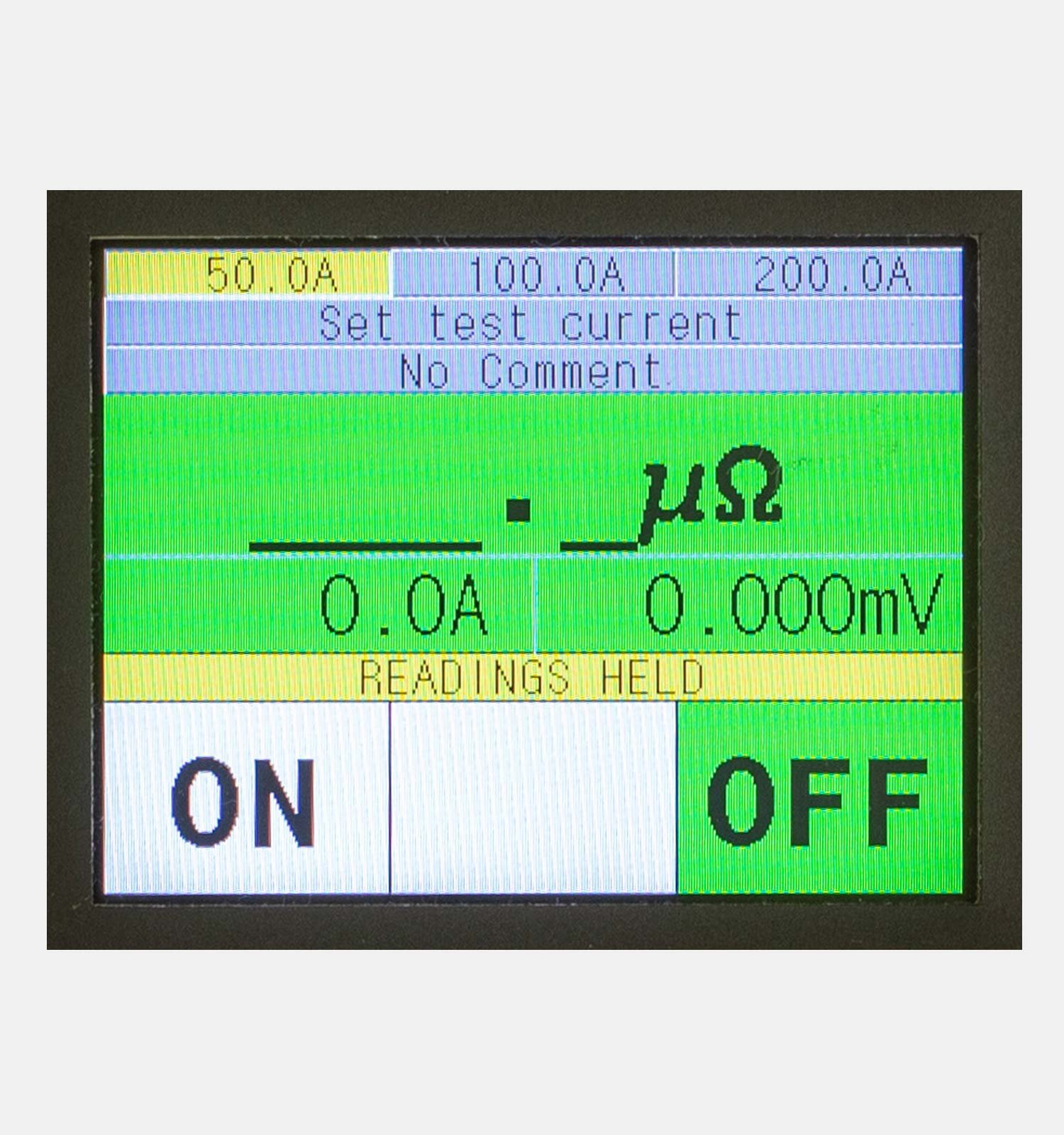

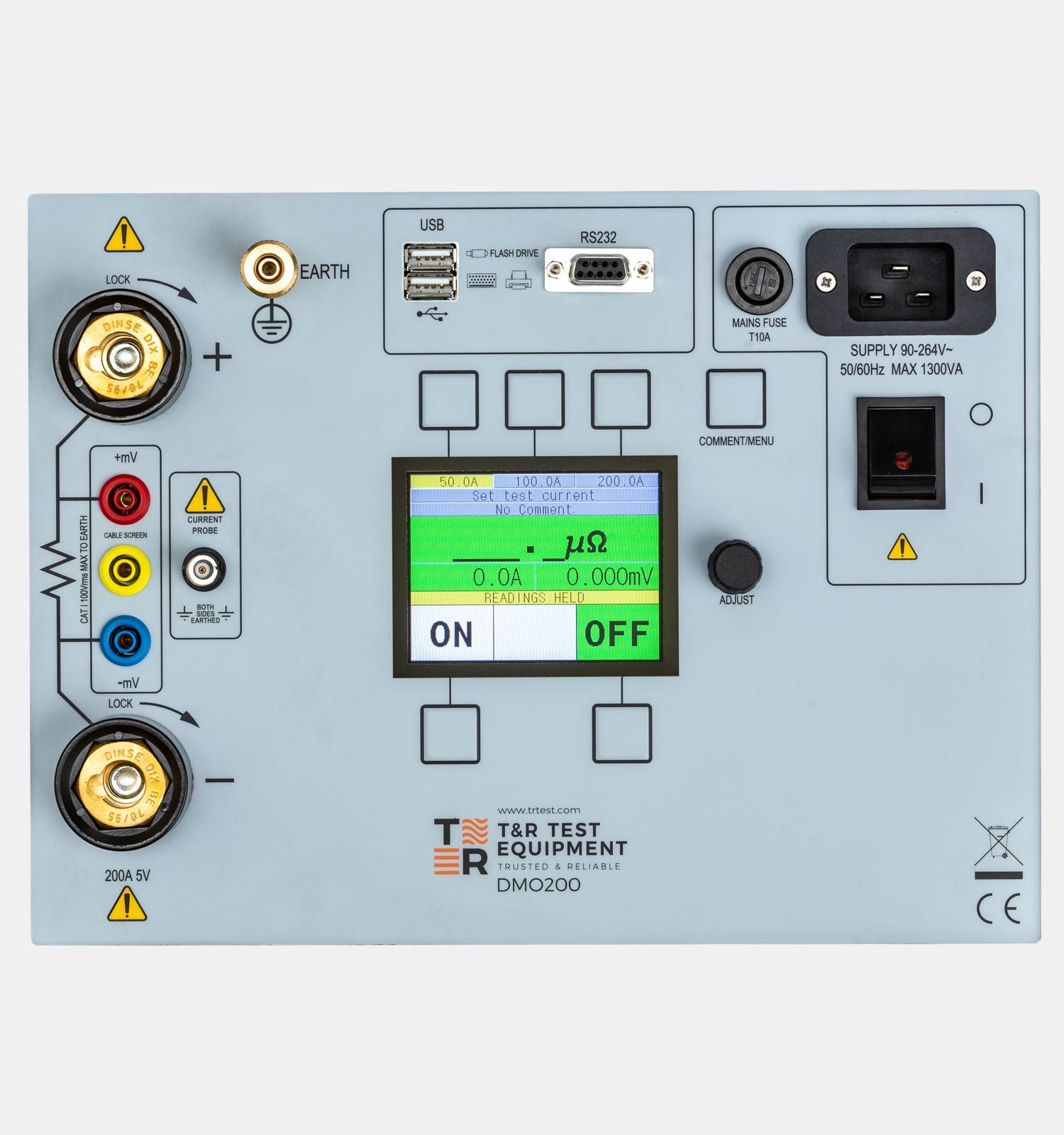

- mV, A, and m/μΩ displayed simultaneously
- USB memory key for data storage
- USB keyboard for comment entry
- Pre-settable test current with three buttons to store user test currents
- Large back-lit liquid crystal display
- Universal supply voltage 90-264V
- Optional current clamp to allows testing of objects with both sides earthed
- IP rating 54
