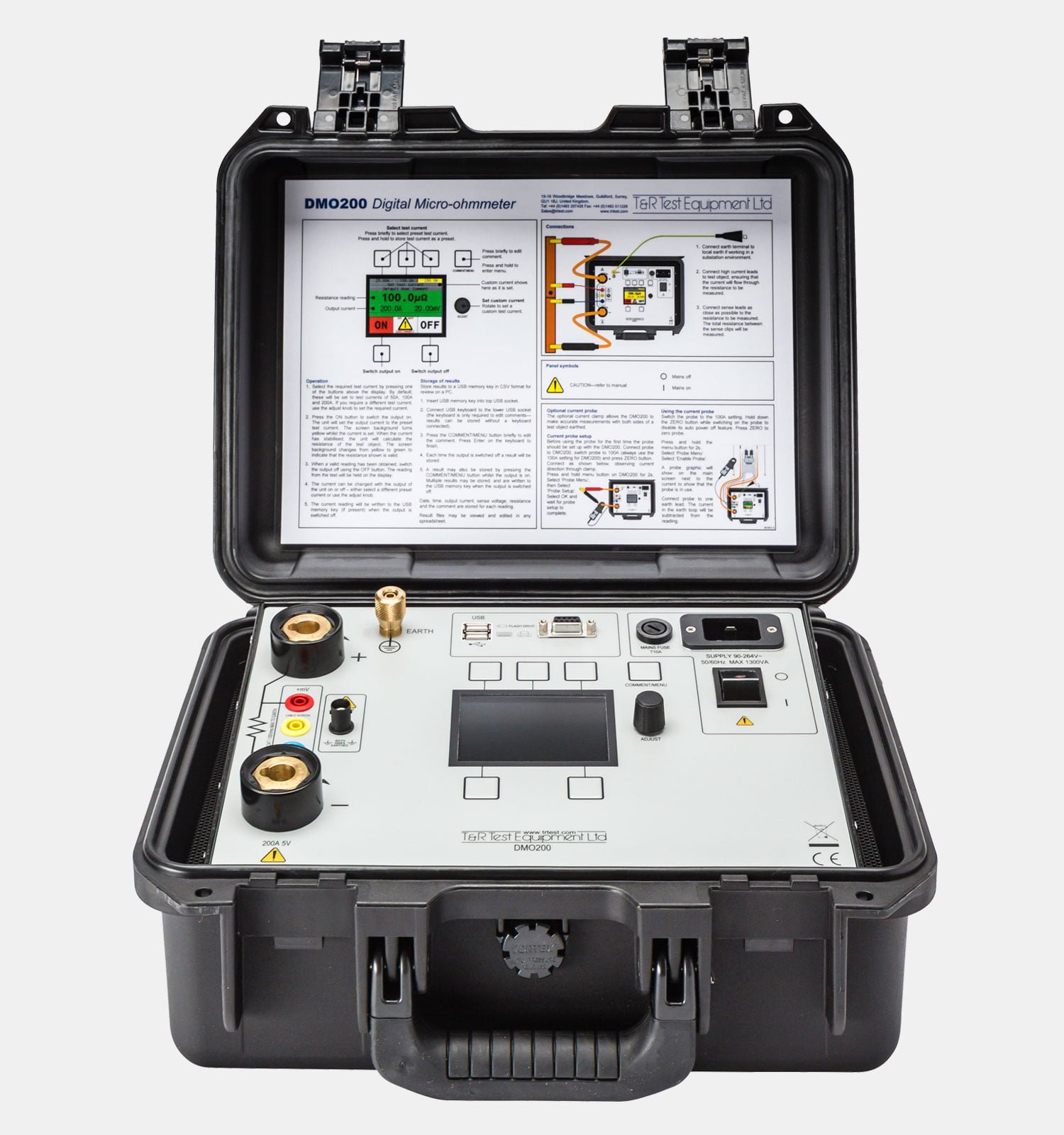

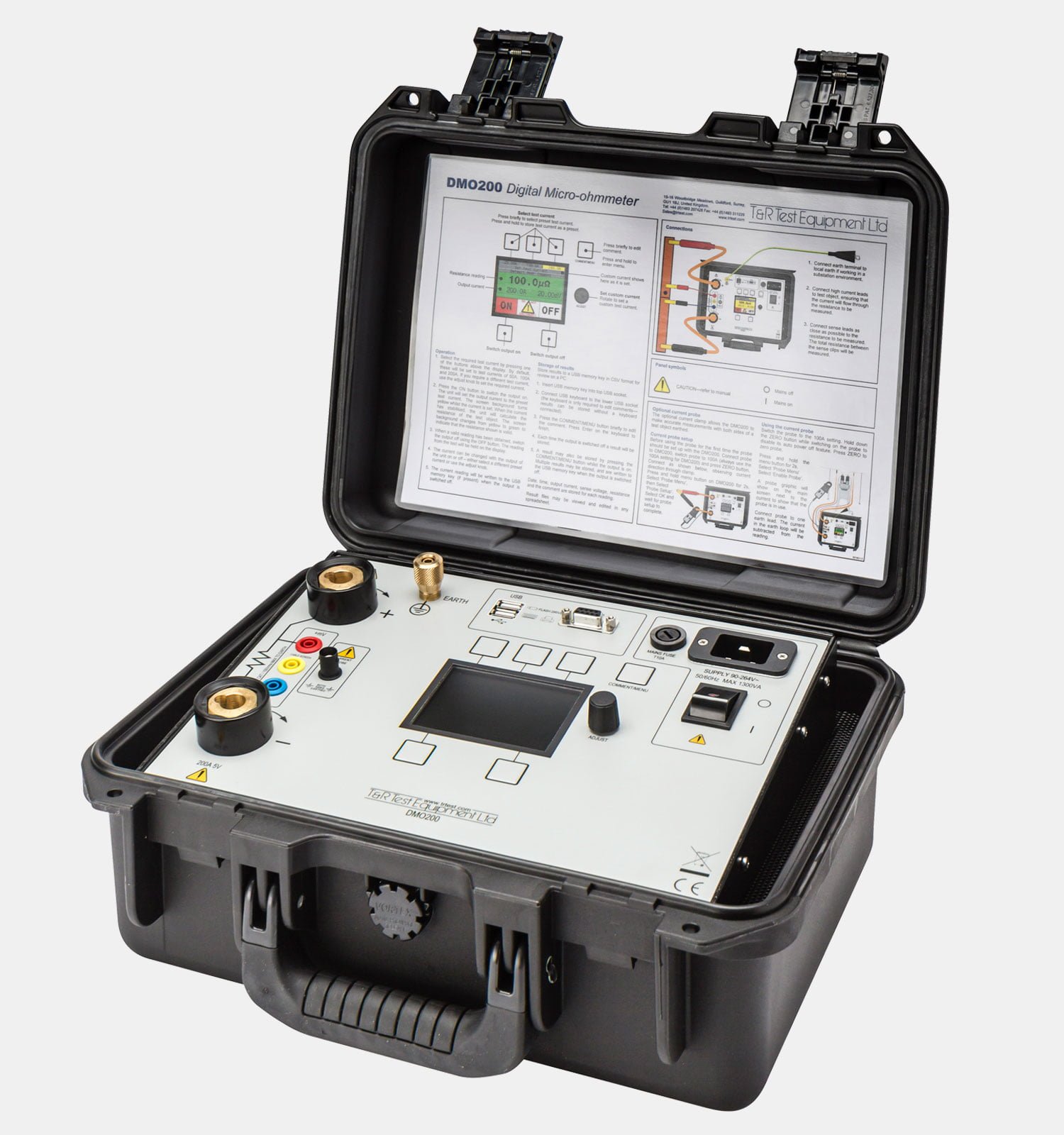

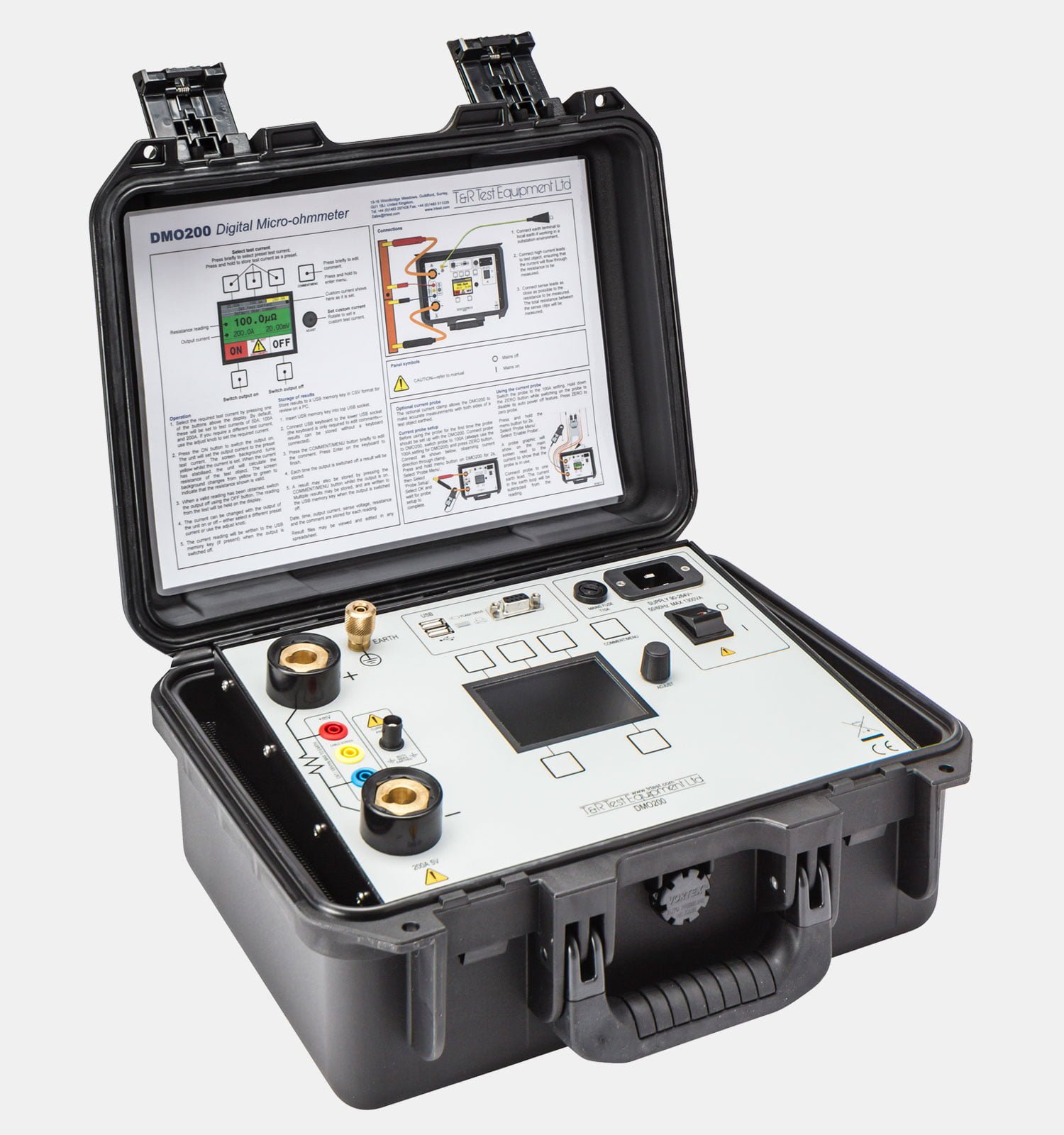

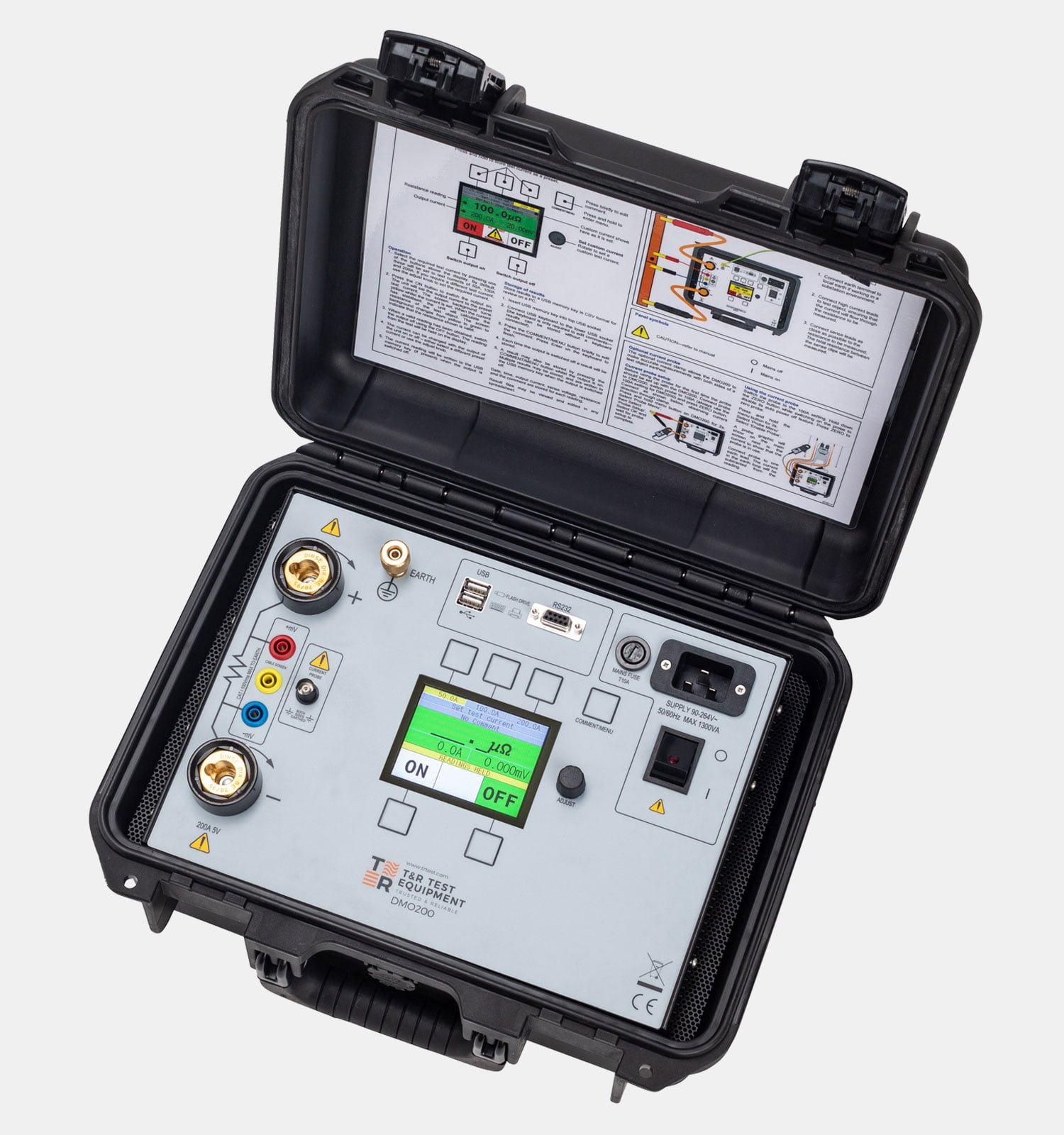

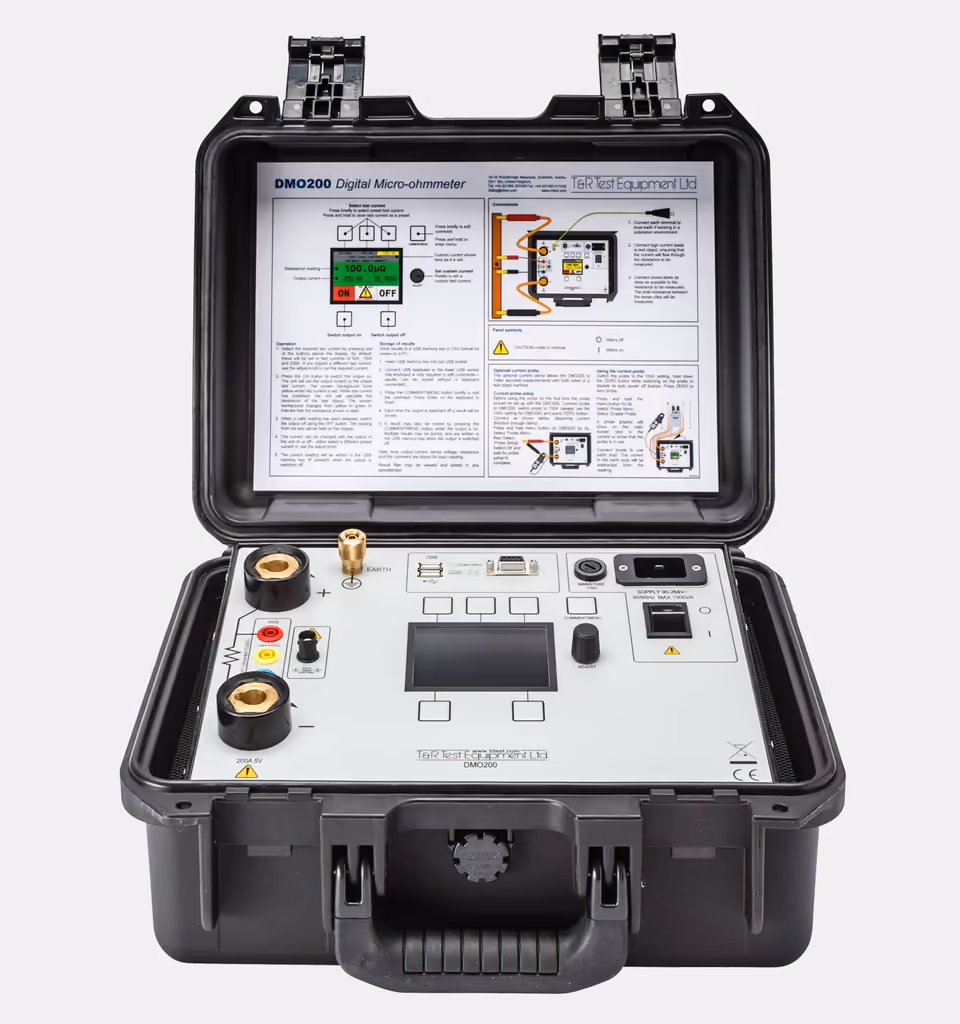

DMO200K Digital Micro-Ohmmeter
Kit-configured 200 A DC micro-ohmmeter supplied with the full lead and accessory set for contact-resistance work in the field.
Delivers the same 1–200 A DC test range and 0.1 µΩ resolution as the DMO200, supplied as a complete kit so a crew can work from one case without ordering leads separately.

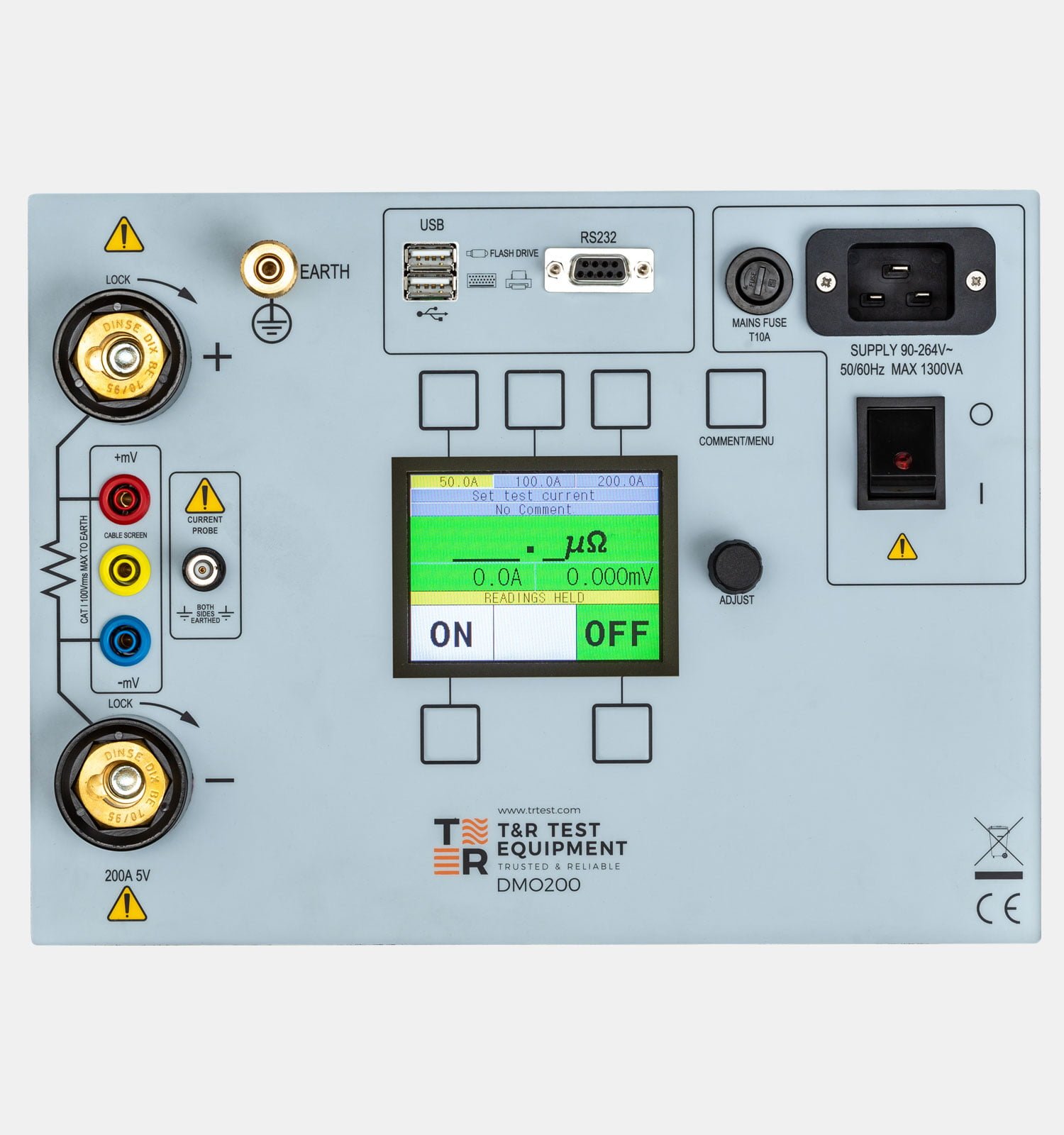

Automatic ranging with simultaneous current, voltage and resistance display keeps operation to a few steps: select the test current, energise the output, read the joint.
Catalog pricing
Request pricing and availability for this item. Z Power Electric can confirm lead time, sourcing options, and part details.
- 30-day returnsOn standard orders
- 24-hour quoteFrom our sourcing team
- Independent sourcingNo territory limits
- Obsolete + backorderSpecialists since day one
Product overview
Suited to switchgear maintenance teams who move between sites and need the instrument, leads and earth connection to travel as a single unit.
Specifications
- Part Number
- DMO200K
- Brand
- T&R Test Equipment
- Weight
- 6.9 kg
- Dimensions
- 360 × 290 × 165 mm
- Supplied Accessories
- User manual Calibration certificate Spare fuse Mains lead Output lead set Earth lead with croc clip Kelvin leads USB key USB keyboard Orange carry case
Key features
- As per DMO200 but supplied with Kelvin Clamp 3m output lead set
- Ultra lightweight (6.9kg)
- 1-200A DC test current with <2.5% ripple
- 0.1μΩ resolution

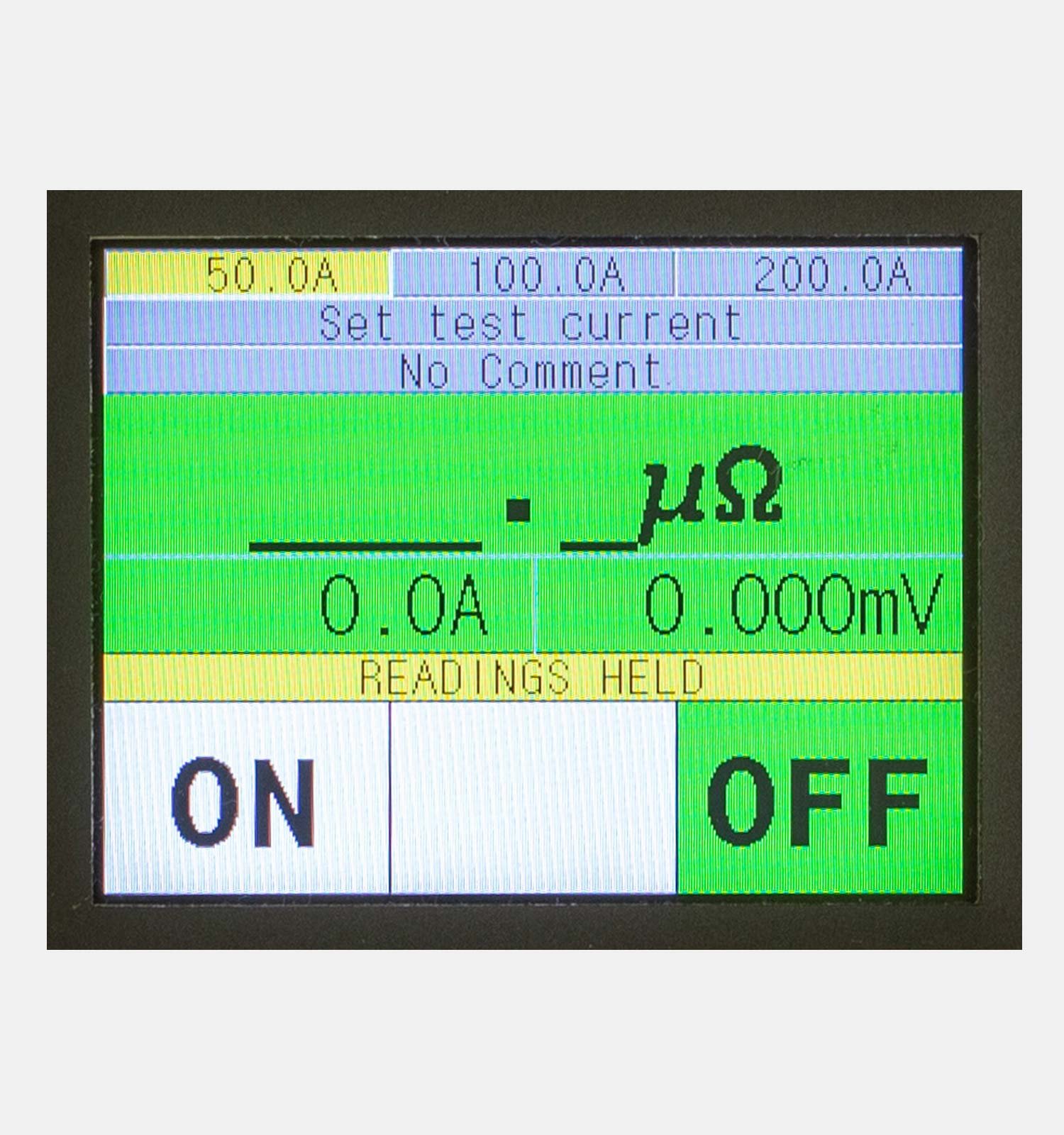

- mV, A, and m/μΩ displayed simultaneously
- USB memory key for data storage
- USB keyboard for comment entry
- Pre-settable test current with three buttons to store user test currents
- Large back-lit liquid crystal display
- Universal supply voltage 90-264V
- Optional current clamp to allows testing of objects with both sides earthed
- IP rating 54
