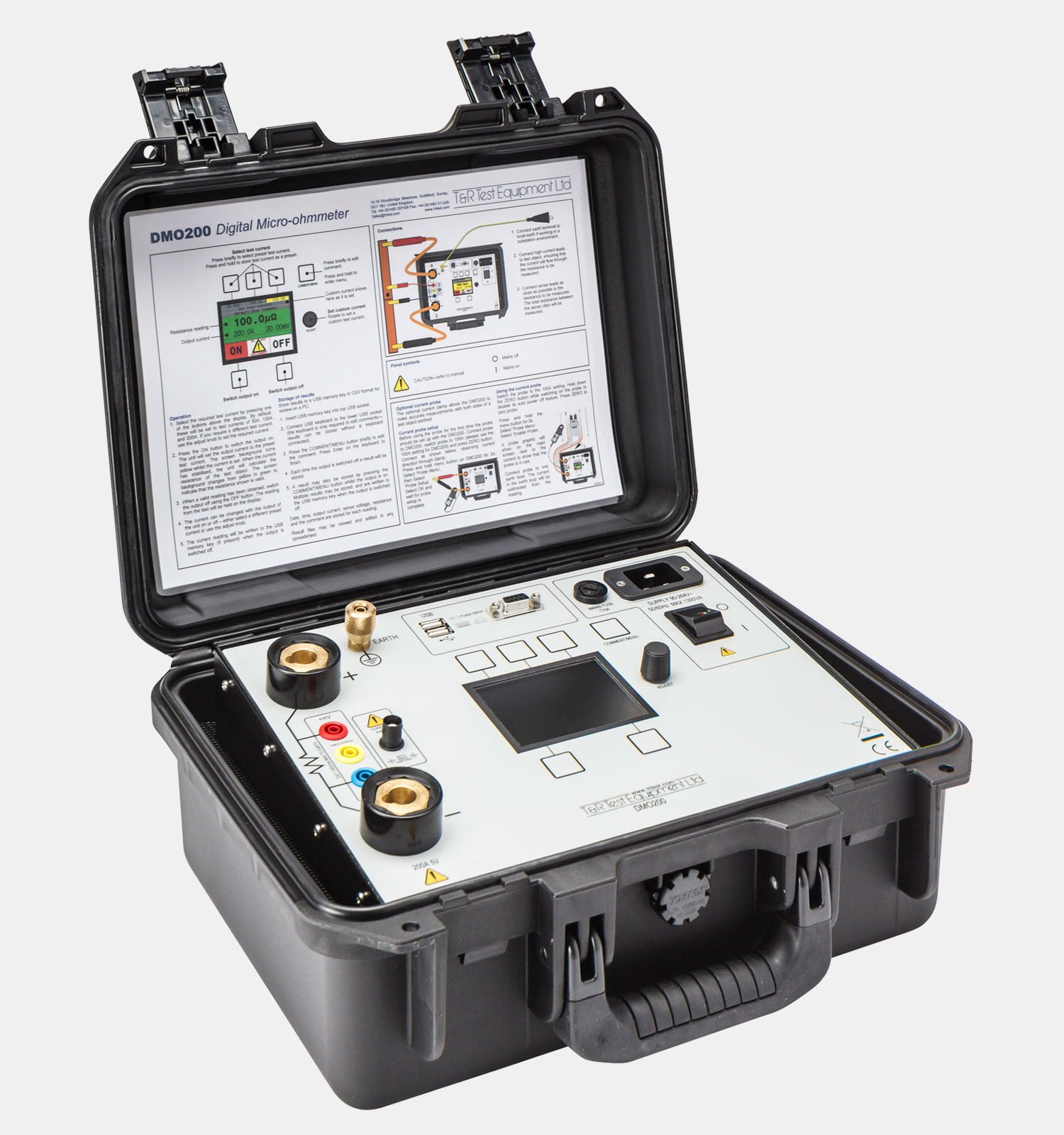

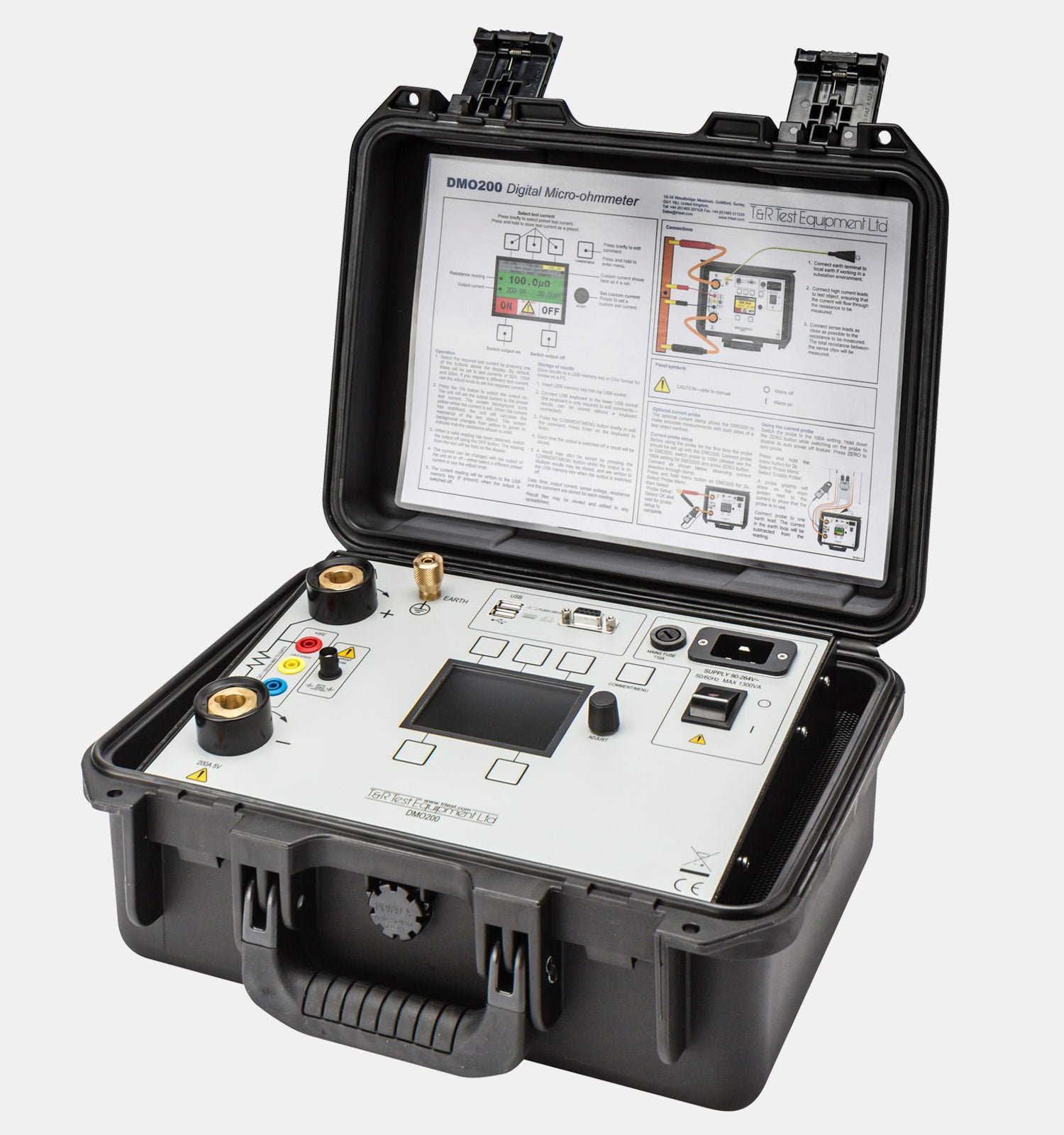

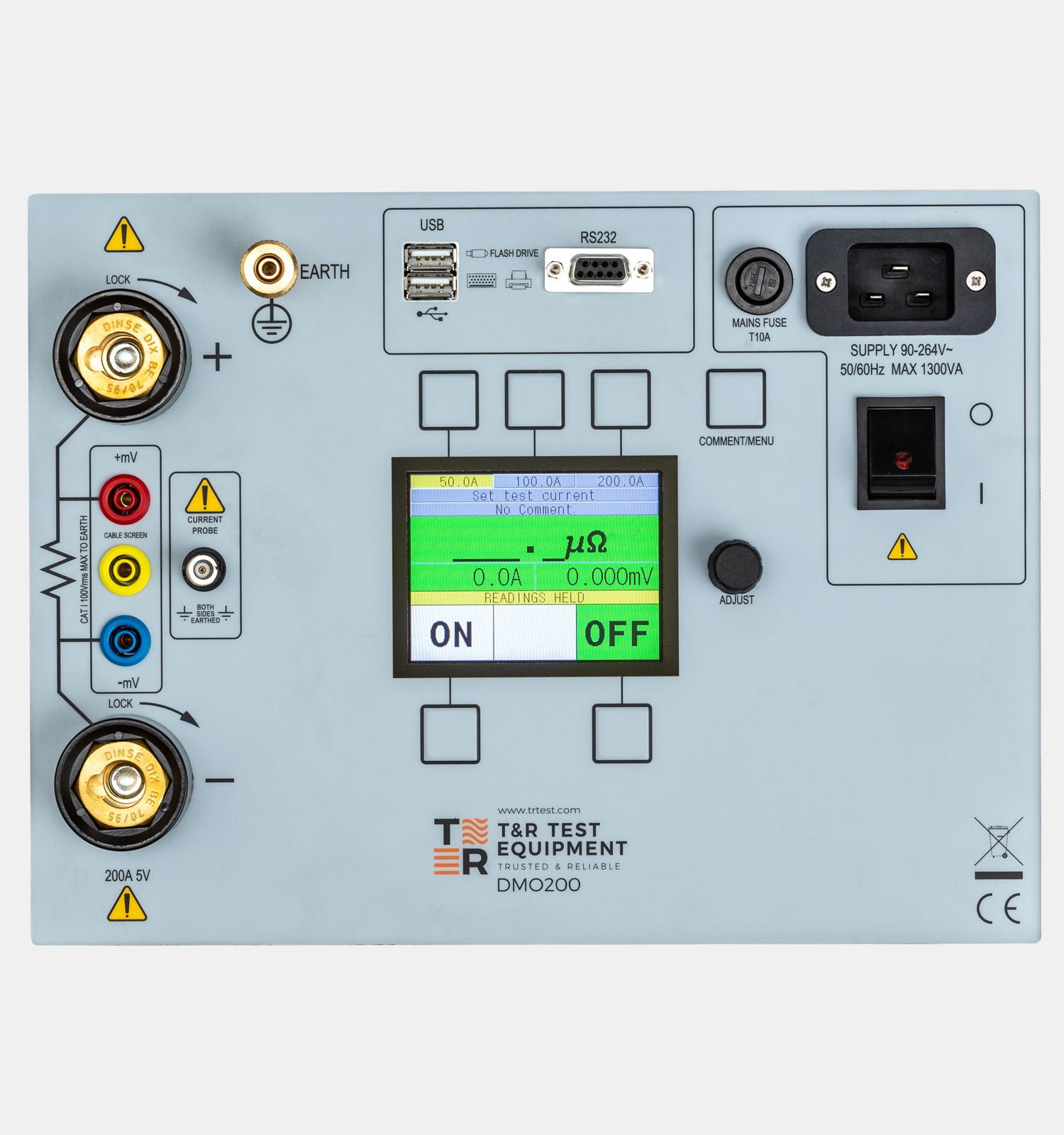

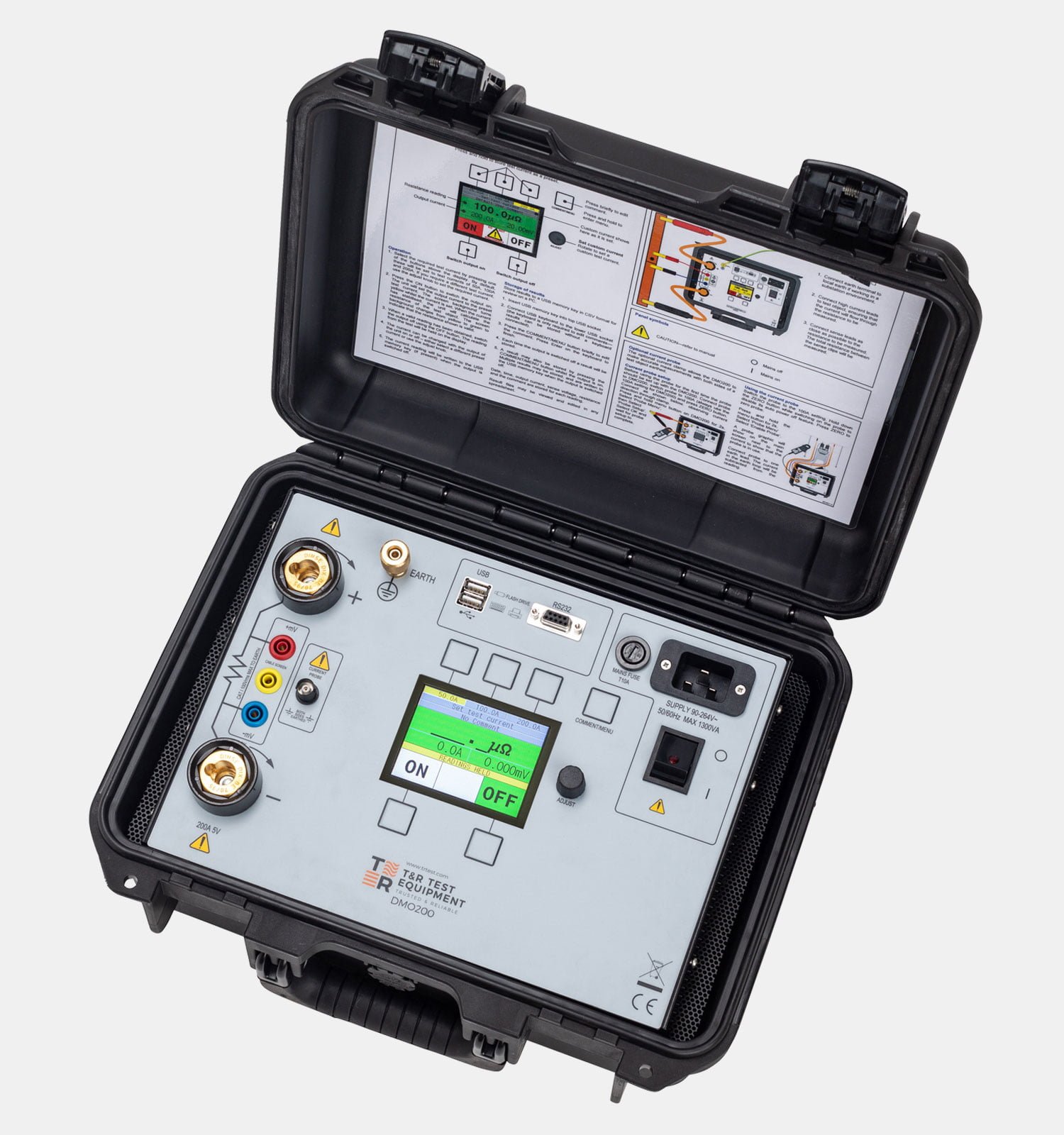

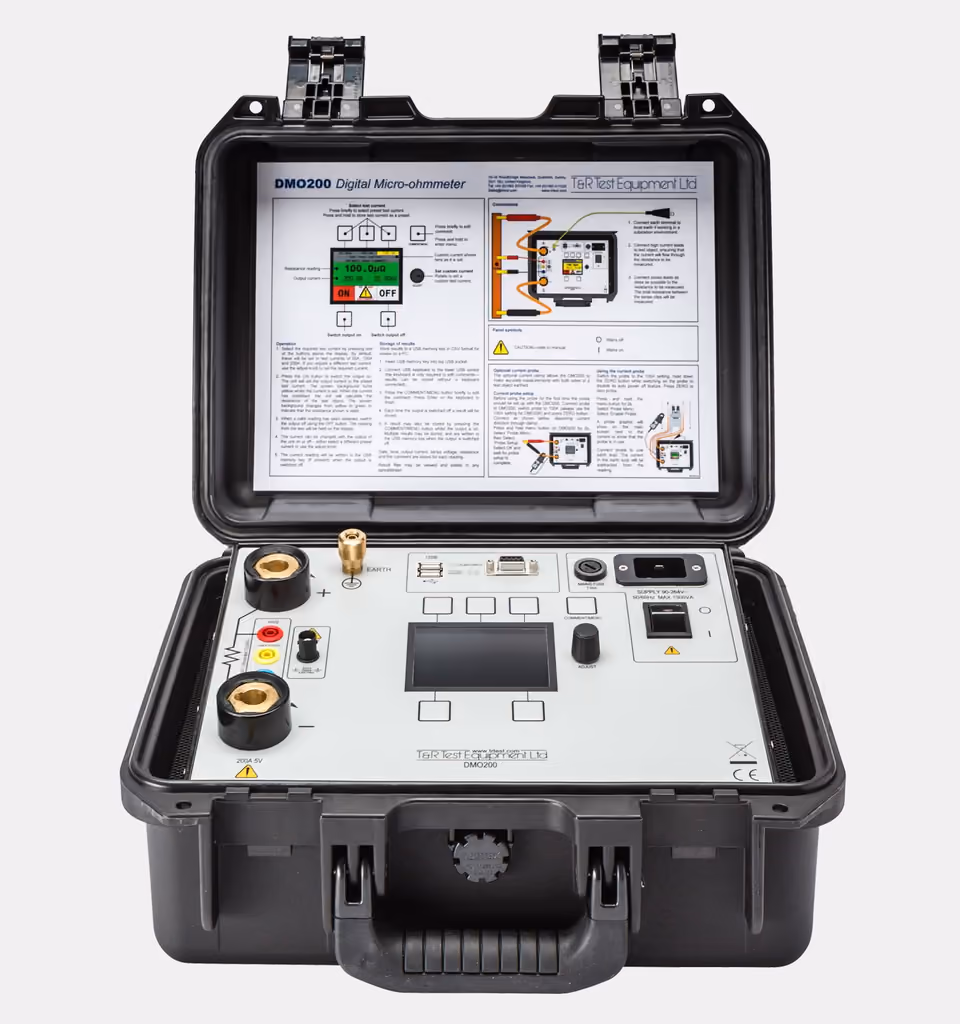

DMO200L5 Digital Micro-Ohmmeter
200 A DC micro-ohmmeter supplied with 5 m leads for joints that sit further from the instrument position.
Carries the DMO200 measurement core — 1–200 A DC, 0.1 µΩ resolution, automatic ranging — with a 5 m lead set as standard.
The longer leads matter where the instrument cannot be placed next to the joint: tall panel stacks, busbar runs and outdoor isolators where a 3 m set forces awkward positioning.
Catalog pricing
Request quotePricing confirmed by sourcing
Request pricing and availability for this item. Z Power Electric can confirm lead time, sourcing options, and part details.
- 30-day returnsOn standard orders
- 24-hour quoteFrom our sourcing team
- Independent sourcingNo territory limits
- Obsolete + backorderSpecialists since day one
Talk to a sourcing expert
Mon - Fri 9:00 AM - 4:30 PM PST
Sat - Sun Closed
Product overview

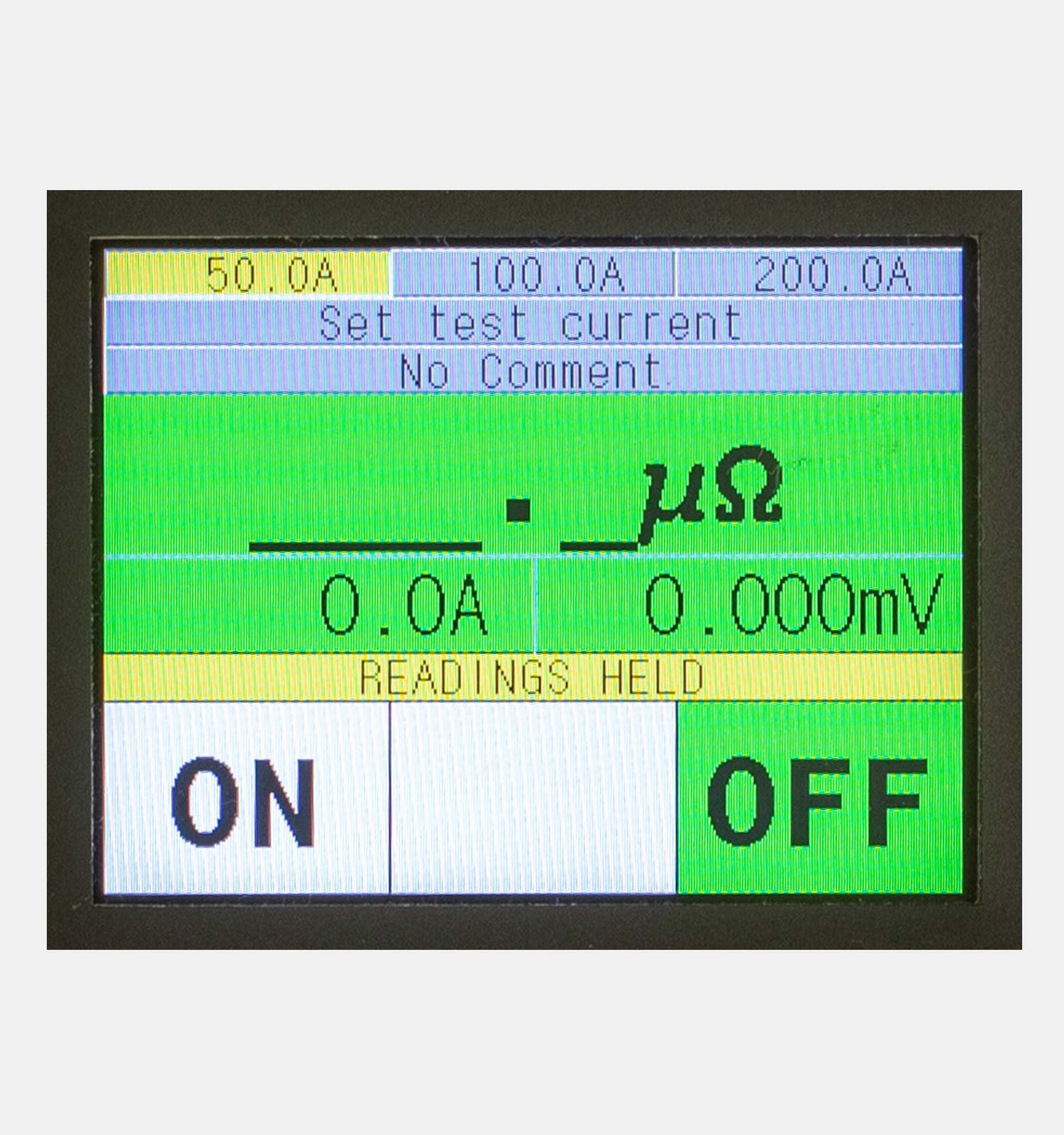

Current, voltage and resistance are shown simultaneously and readings hold on screen after the output is off, so results can be recorded after stepping back from the test point.
Specifications
- Part Number
- DMO200L5
- Brand
- T&R Test Equipment
- Weight
- 6.9 kg
- Dimensions
- 360 × 290 × 165 mm
- Supplied Accessories

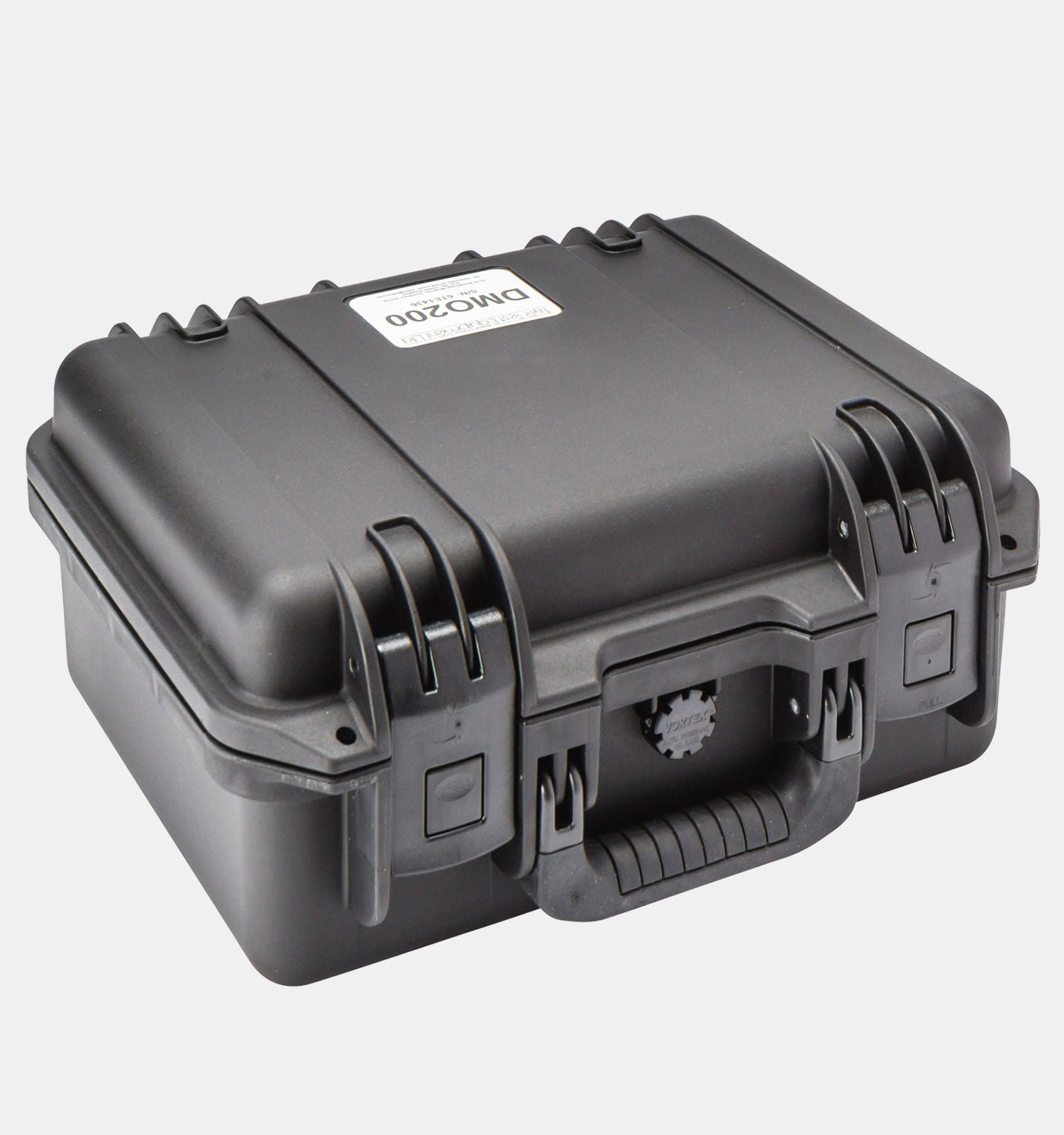

- User manual Calibration certificate Spare fuse Mains lead Output lead set Earth lead with croc clip USB key USB keyboard Orange carry case
Key features
- As per DMO200 Test System but supplied with standard 5m output lead set
- Ultra lightweight (6.9kg)
- 1-200Adc test current with <2.5% ripple
- 0.1μΩ resolution
- mV, A, and m/μΩ displayed simultaneously
- USB memory key for data storage
- USB keyboard for comment entry
- Pre-settable test current with three buttons to store user test currents
- Large back-lit liquid crystal display
- Universal supply voltage 90-264V
- Optional current clamp to allows testing of objects with both sides earthed
- IP rating 54
