Quick facts
- Brand
- T&R Test Equipment
- Part number
- DMO200
- Category
- Sensors & Instrumentation

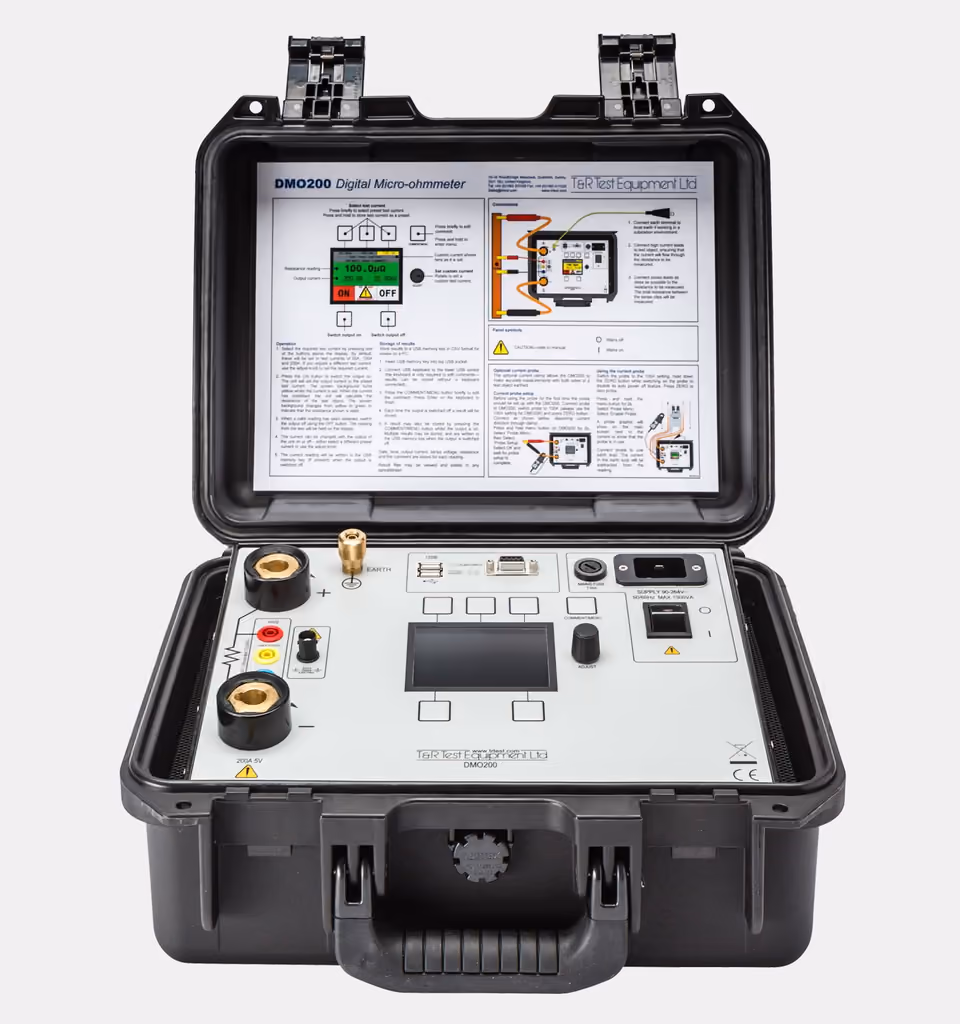

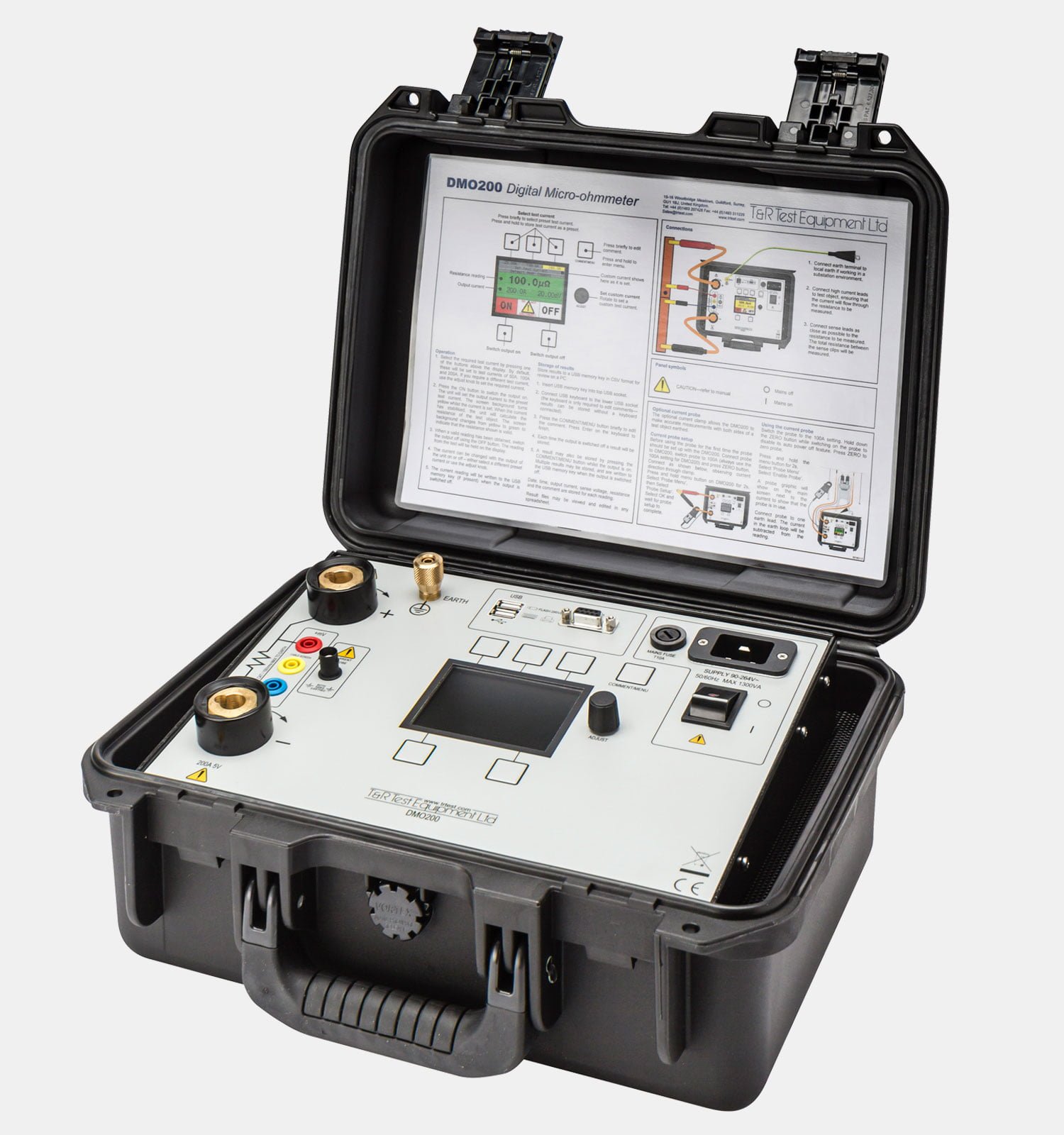

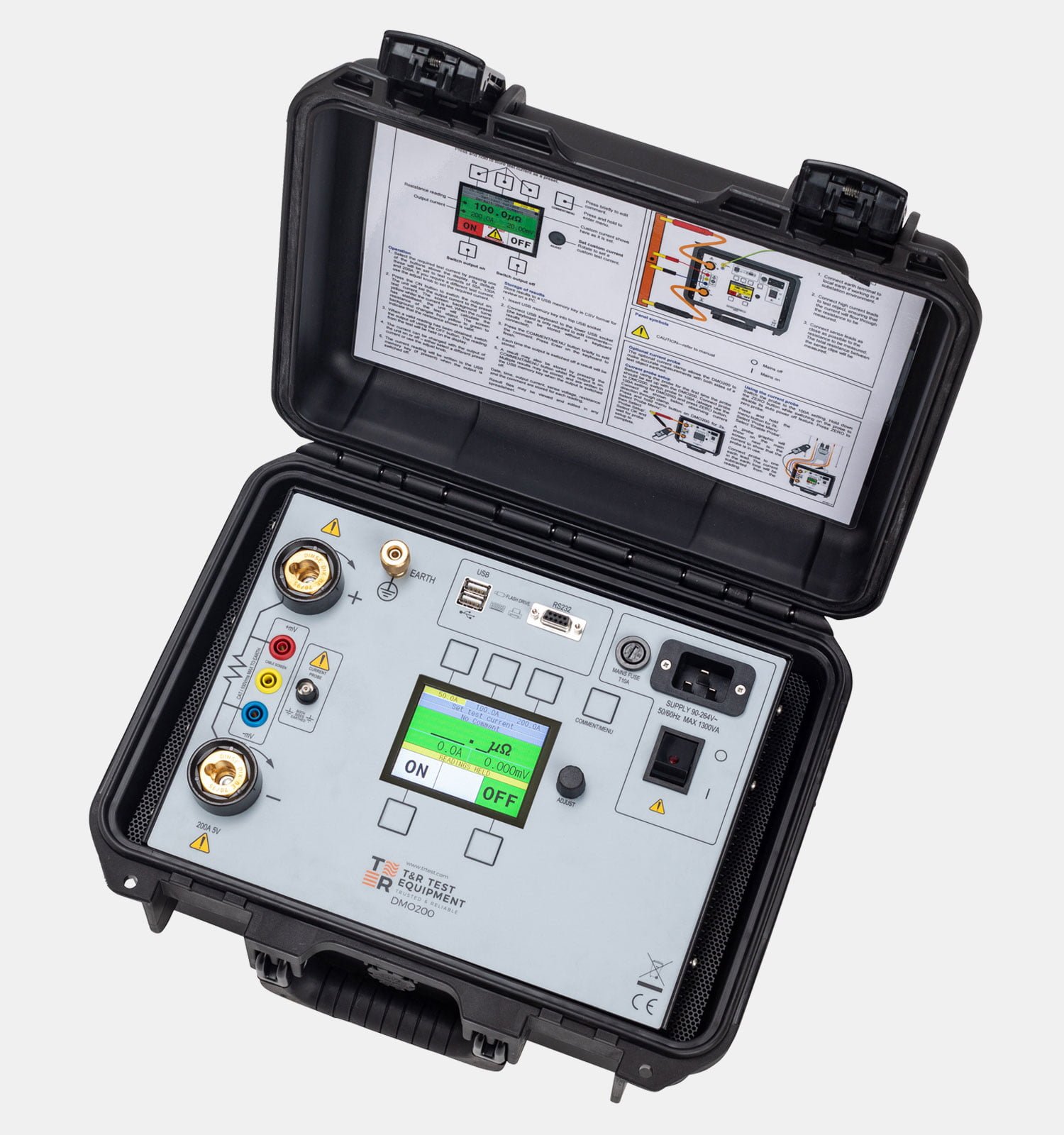

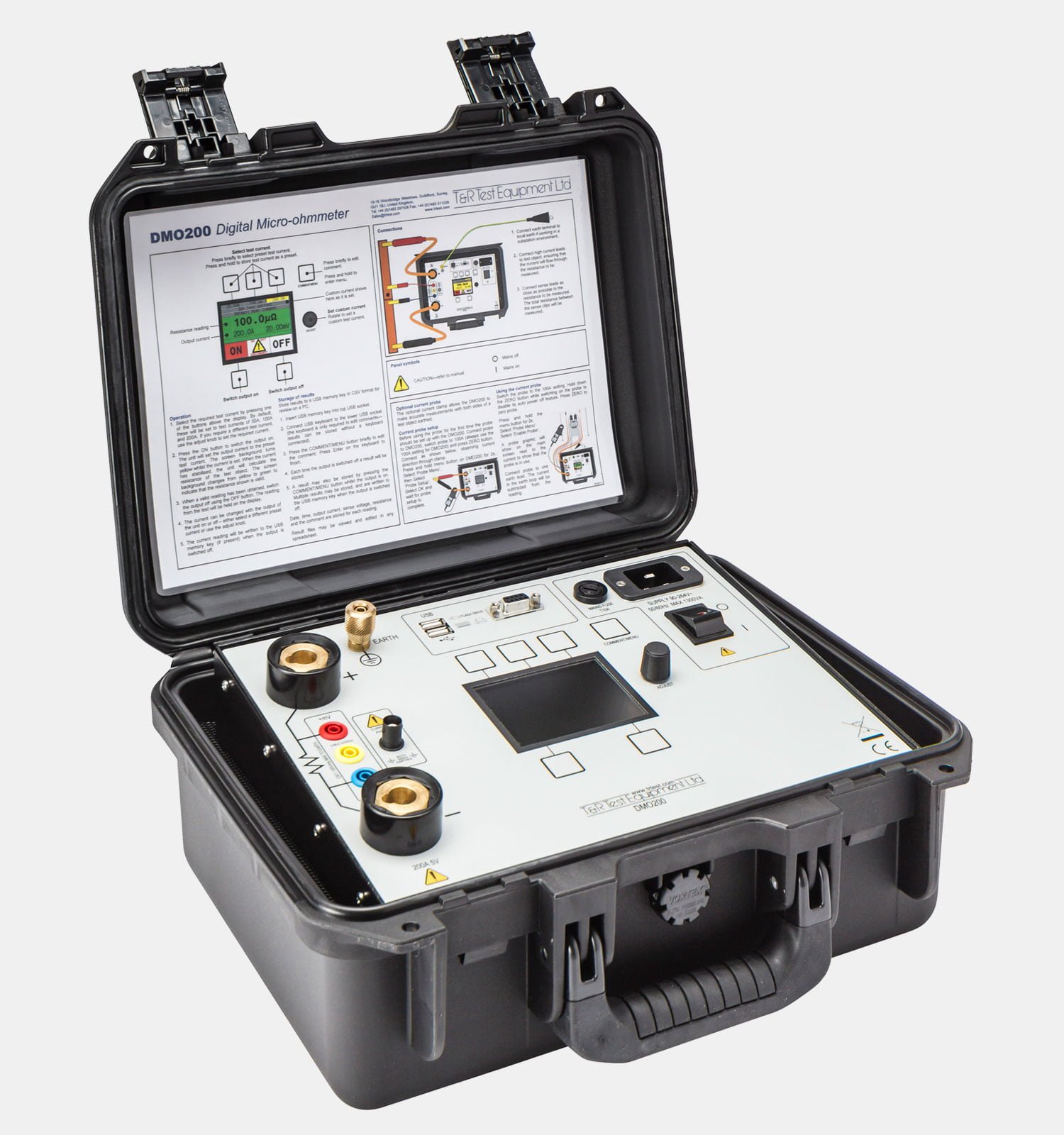

DMO200 Digital Micro-Ohmmeter
200 A DC micro-ohmmeter for contact-resistance testing on breakers, isolators and busbar joints, resolving to 0.1 µΩ at 6.9 kg.
Measures contact and joint resistance down to 0.1 µΩ using test currents from 1 A to 200 A DC, with ripple held under 2.5% so readings stay stable on inductive joints.

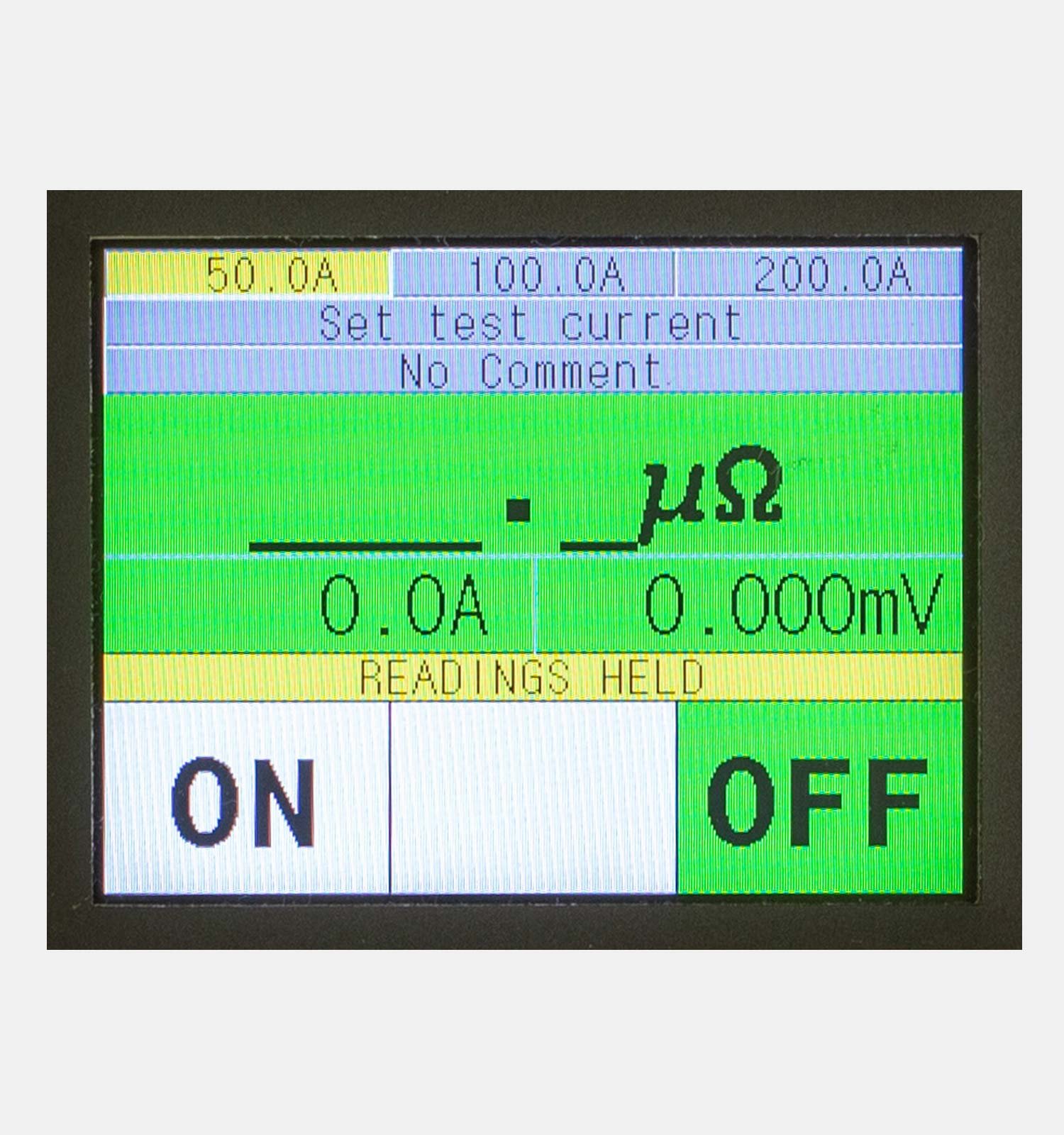

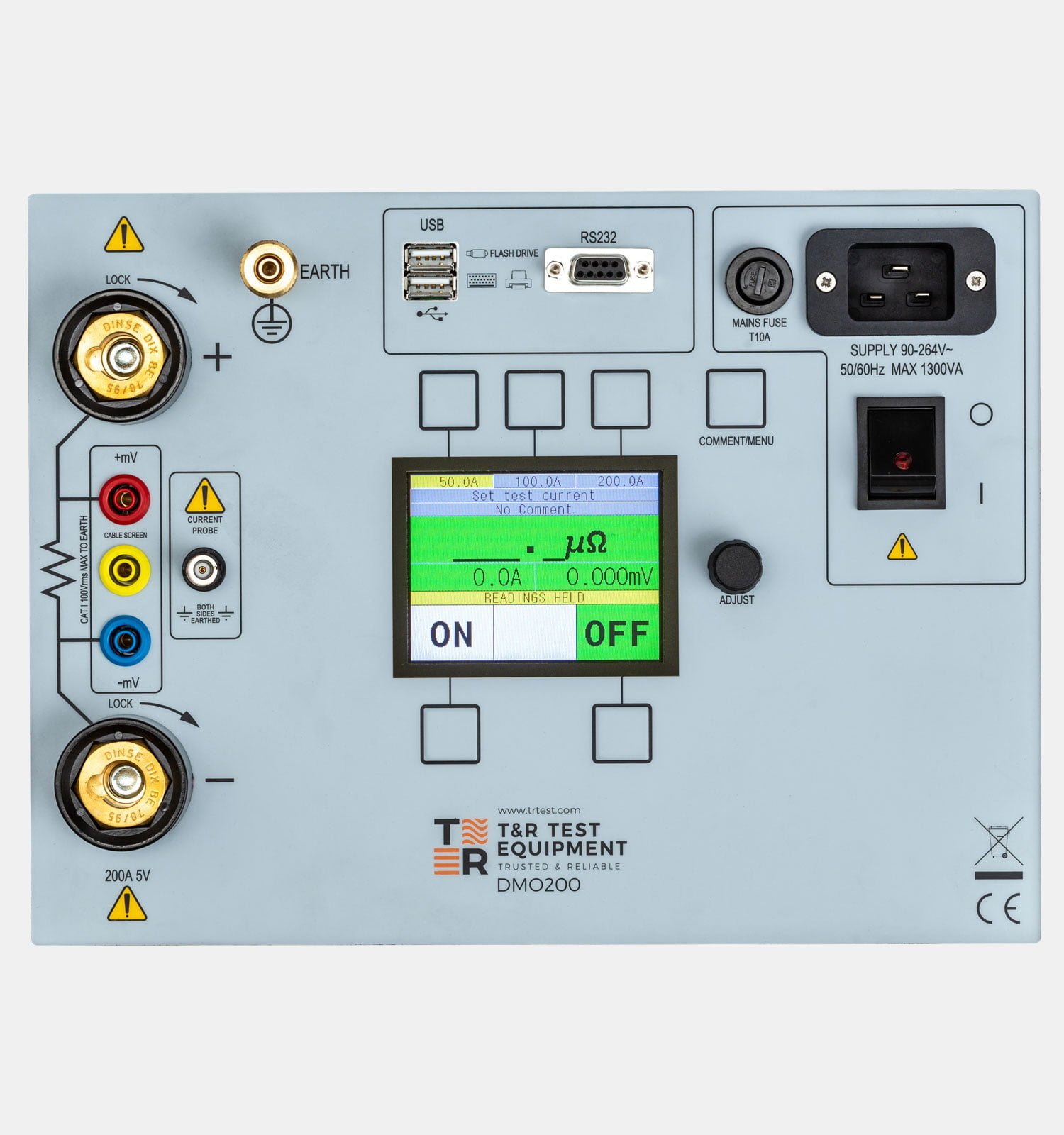

Range selection is automatic and current, voltage and resistance are displayed together, so a technician reads the full picture on one screen rather than deriving resistance by hand. Readings persist on the display after the output is switched off.
Catalog pricing
Request pricing and availability for this item. Z Power Electric can confirm lead time, sourcing options, and part details.
- 30-day returnsOn standard orders
- 24-hour quoteFrom our sourcing team
- Independent sourcingNo territory limits
- Obsolete + backorderSpecialists since day one
Product overview
Results are written to a USB memory key and can be annotated from the supplied USB keyboard, which keeps commissioning records time-stamped without a laptop on site. Rated IP54 and supplied in an orange carry case at 6.9 kg.
Specifications
- Part Number
- DMO200
- Brand
- T&R Test Equipment
- Weight
- 6.9 kg
- Dimensions
- 360 × 290 × 165 mm
- Supplied Accessories
- User manual Calibration certificate Spare fuse Mains lead Output lead set Earth lead with croc clip USB key USB keyboard Orange carry case
Key features
- Ultra lightweight (6.9kg)
- 1-200A DC test current with <2.5% ripple
- Supplied with standard 3m output lead set
- 0.1μΩ resolution
- mV, A, and m/μΩ displayed simultaneously
- 100A continuous current
- USB memory key for data storage
- USB keyboard for comment entry
- Pre-settable test current with three buttons to store user test currents
- Large back-lit liquid crystal display
- Universal supply voltage 90-264V
- Thermal and over-current protection
- Optional current clamp to allows testing of objects with both sides earthed
- IP rating 54
