Quick facts
- Part number
- PT30-10
- Category
- Wire, Cable & Connectivity
PT30-10 Mk3 +/-30KV - High Voltage DC Cable Test Systems
T& R Test Equipment is a market leader in the field of protection test equipment. The range includes primary and secondary current injection equipment up to 6000A, voltage sources, micro-ohmmeters and high voltage test systems up to 100kV.

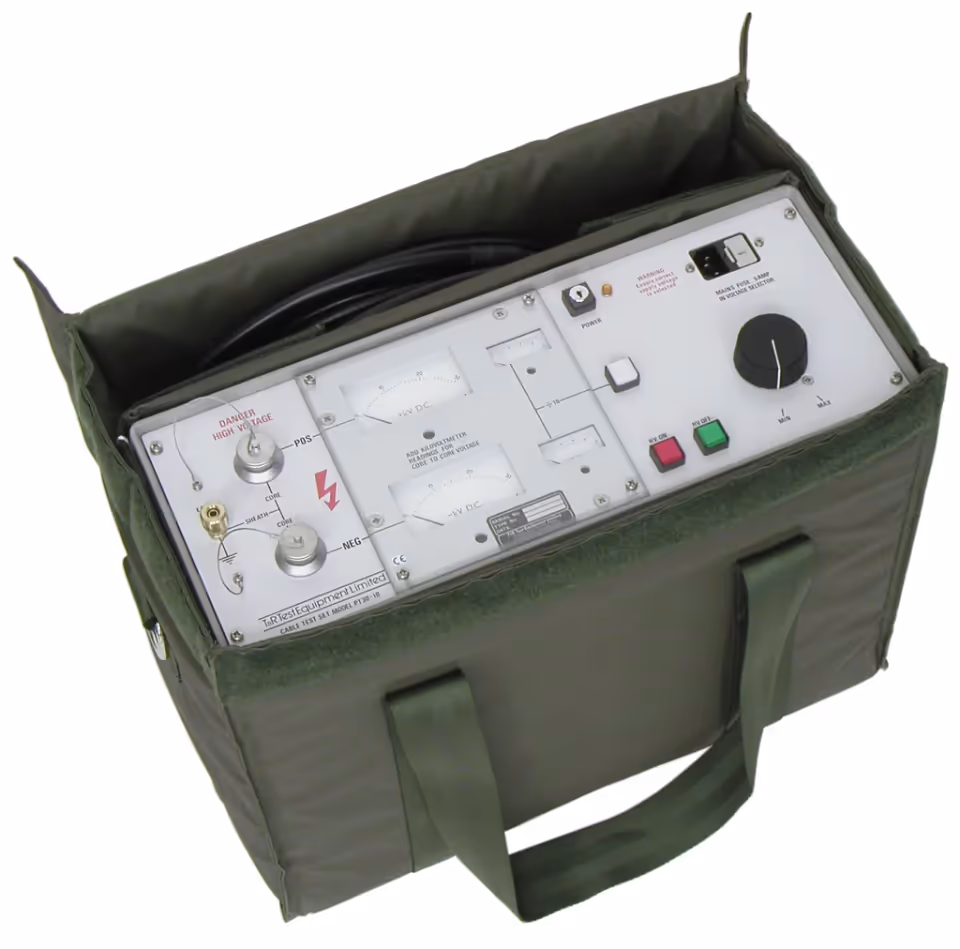

The PT30-10 Mk3 is a portable high voltage DC cable test system with ±30kV output and 10mA output capability. Built for DC hipot testing of MV cables, switchgear, and capacitive loads. Automatic earthing system dumps residual capacitive charge after each test — a critical safety feature for HV cable test work.
Z Power Electric sources T& R test equipment as an independent MRO supplier. Request a quote for the PT30-10 Mk3 — availability confirmed within 24 hours.
Catalog pricing
Request pricing and availability for this item. Z Power Electric can confirm lead time, sourcing options, and part details.
Key features
- Output: ±30kVDC
- Output capability: 10mA
- Voltage and current metered on HV outputs
- Automatic earth system — discharges capacitive loads after test
- HV output plug and socket system
- Key-operated supply switch — prevents unauthorized use
- Automatic mains voltage selection
- Visual indication of test piece failure
