Potter & Brumfield Kup Series General Purpose Power Relay 240VAC Dpdt | KUP-14A45-240
Potter & Brumfield KUP-14A45-240 is a general purpose power relay with 14-pin configuration and 240VAC coil voltage. Features DPDT contact arrangement for industrial control applications.

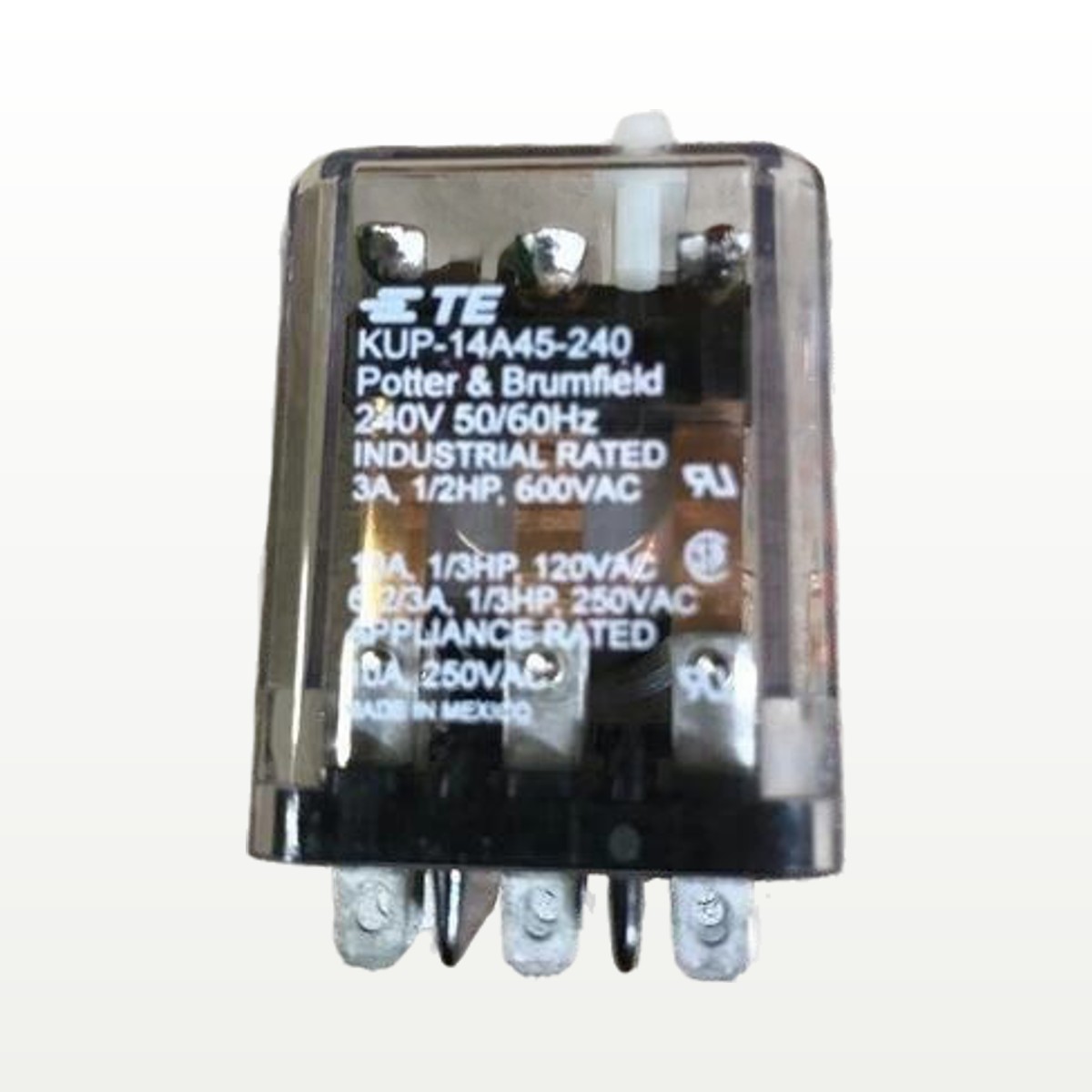

The Potter & Brumfield KUP-14A45-240 is a reliable general purpose power relay designed for industrial automation and control applications. This relay features a 14-pin plug-in configuration with a 240VAC coil voltage, making it suitable for a wide range of commercial and industrial control circuits.
Built with Potter & Brumfield's proven design standards, this relay provides dependable switching performance for loads up to 10 amperes. The DPDT (Double Pole Double Throw) contact arrangement offers versatility in circuit configuration, allowing for both normally open and normally closed switching operations.
Availability
In stock
This part is in stock at Z Power Electric and ships from our Calimesa, California warehouse.
Catalog pricing
Add this item to your cart or contact Z Power Electric for quantity pricing, lead-time support, and backorder recovery.
- 30-day returnsOn standard orders
- 24-hour quoteFrom our sourcing team
Quick facts
- Part number
- KUP-14A45-240
- Condition
- New
- Category
- Electrical Components
Also searched as
KUP14A45-240 · KUP 14A45 240 · KUP14A45240
Product overview
The relay's compact design and standard 14-pin base make it easy to integrate into existing control panels and equipment. Its robust construction ensures long service life even in demanding industrial environments, making it an ideal choice for HVAC systems, lighting controls, motor controls, and general automation applications.
Specifications
- Coil Voltage
- 240VAC
- Contact Configuration
- DPDT (2 Form C)
- Contact Rating
- 10A at 240VAC resistive
- Pin Configuration
- 14-pin
- Mounting
- Plug-in socket
- Operating Temperature
- -40°C to +85°C (approximately)
- Contact Material
- Silver alloy
- Coil Power
- Approximately 2-3 watts
- Pickup Voltage
- Approximately 75% of rated voltage
- Dropout Voltage
- Approximately 10% of rated voltage
- Life Expectancy
- 100,000+ mechanical operations
Key features
- 14-pin plug-in configuration for easy installation
- 240VAC coil voltage for industrial applications
- DPDT contact arrangement for flexible switching
- 10 ampere contact rating
- Compact design for space-efficient mounting
- Industrial-grade construction for reliability
Part number breakdown
KUP-14A45-240 Breakdown:
KUP = Potter & Brumfield General Purpose Relay Series
14 = 14-pin configuration
A = Contact arrangement (DPDT)
45 = Internal design code/contact rating
240 = 240VAC coil voltage
Why buy from Z Power Electric
- Independent Sourcing — We source through independent channels to find parts others can't.
- Quality Assurance — Every part is inspected and verified before shipping.
- Fast Response — 24-hour quote turnaround on most requests.
- Global Reach — Serving maintenance teams and procurement managers worldwide.
Not what you're looking for? We source alternates, discontinued parts, and backordered inventory for urgent maintenance needs.
Request a quoteQuestions about this part
Is the Potter & Brumfield KUP-14A45-240 still made?
The KUP family is long-running and specific coil/contact combinations come and go. Z Power Electric sources the KUP-14A45-240 through independent and surplus inventory and states on the quote whether we located the original or are offering an equivalent.
What does the KUP-14A45-240 part number mean?
It resolves to a DPDT general-purpose power relay with a 240 VAC coil on the KUP 14-pin base. If your existing relay's label is worn, send a photo of the socket and we will work back to the right coil and contact arrangement.
Do you supply the matching socket?
Ask for it on the request. Sockets and hold-down clips for legacy relay bases are sourced the same way and are worth ordering with the relay rather than after it.
