PLU-6k Loading Unit
T&R Test Equipment PLU-6K loading unit for the CU-Ps primary current injection system, giving up to 6000 A for 5 minutes and 12 kA for 1 second in parallel mode.

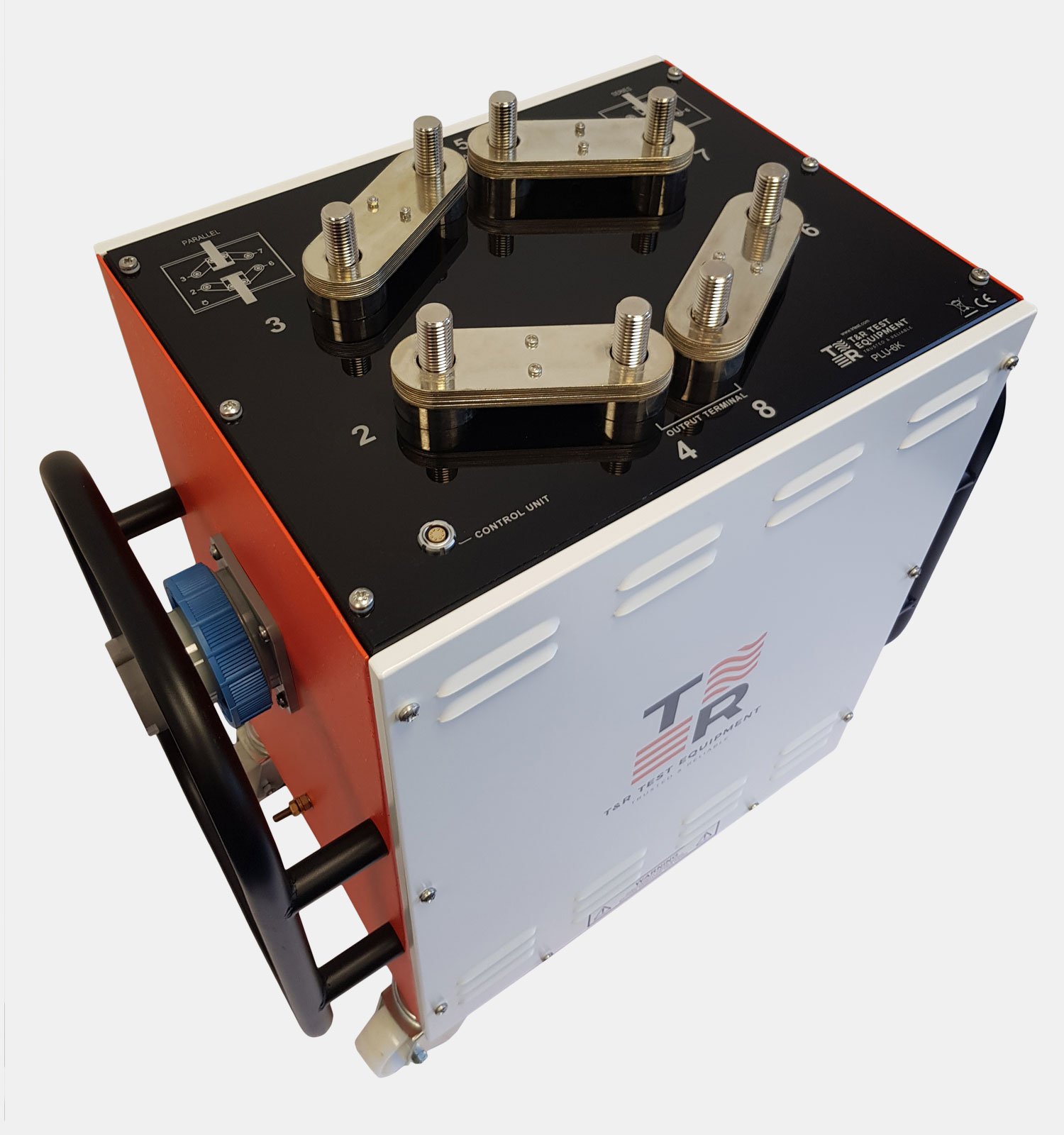

The PLU-6K is the higher-rated of the two loading units for T&R Test Equipment's CU-Ps primary current injection test system, alongside the PLU-5K. The CU-Ps control unit handles all metering, timing and tripping, while the loading unit delivers the high current output. Because the loading unit is compact, it can be placed close to the test object to keep lead lengths short.
Output is continuously variable from zero, and the unit has two outputs that can be connected in parallel or series. In parallel mode (0-3.3 V open circuit) T&R rates it at 3000 A continuously, 6000 A for 5 minutes on and 15 minutes off, and 12,000 A for pulses of 1 second or less. In series mode (0-6.6 V) the figures are 1500 A, 3000 A and 6000 A.
Availability
Backordered — sourced independently
Not on our shelf today. Z Power Electric sources this part through independent, surplus, and new-old-stock channels rather than waiting on the factory queue, and confirms price and lead time within 24 hours.
Catalog pricing
Request pricing and availability for this item. Z Power Electric can confirm lead time, sourcing options, and part details.
- 30-day returnsOn standard orders
- 24-hour quoteFrom our sourcing team
Quick facts
- Brand
- T&R Test Equipment
- Part number
- PLU-6K
- Category
- Safety & Test Equipment
Also searched as
PLU6K · PLU 6K
Product overview
It connects to the test object with T&R high current lead sets, such as the 6000AL leads (2 m, 1120 mm²) rated for 6000 A and 12 kA in pulse mode. T&R notes that currents above 3000 A need very short leads. The unit is built in a steel case with castors and handles, weighs 135 kg, and includes a duty cycle trip and thermal protection.
Specifications
- Part Number
- PLU-6K
- Parallel mode
- 0-3.3 V; 3000 A continuous, 6000 A (5 min on / 15 min off), 12 kA (1 s pulse)
- Series mode
- 0-6.6 V; 1500 A continuous, 3000 A (5 min on / 15 min off), 6000 A (1 s pulse)
- Maximum power
- 20 kVA (5 min); 40 kVA (1 s pulse)
- Weight
- 135 kg
- Dimensions
- 660 x 400 x 740 mm
- Protection
- Duty cycle trip, thermal protection
- Used with
- T&R CU-Ps primary current injection control unit
