NLU5000 Loading Unit

5000 A loading unit for high-current primary injection testing on large switchgear and CT circuits.

Delivers a controlled load at up to 5000 A, extending primary injection testing to the largest circuits in a distribution substation.

Used with NAL5000 output leads (1.5 m and 3 m) sized with 560 mm² conductors to carry the test current without excessive volt drop.

Availability

Backordered — sourced independently

Not on our shelf today. Z Power Electric sources this part through independent, surplus, and new-old-stock channels rather than waiting on the factory queue, and confirms price and lead time within 24 hours.

Catalog pricing

Request quotePricing confirmed by sourcing
Request quote

Request pricing and availability for this item. Z Power Electric can confirm lead time, sourcing options, and part details.

  • 30-day returns
    On standard orders
  • 24-hour quote
    From our sourcing team
Talk to a sourcing expert
Mon - Fri 9:00 AM - 4:30 PM PST
Sat - Sun Closed

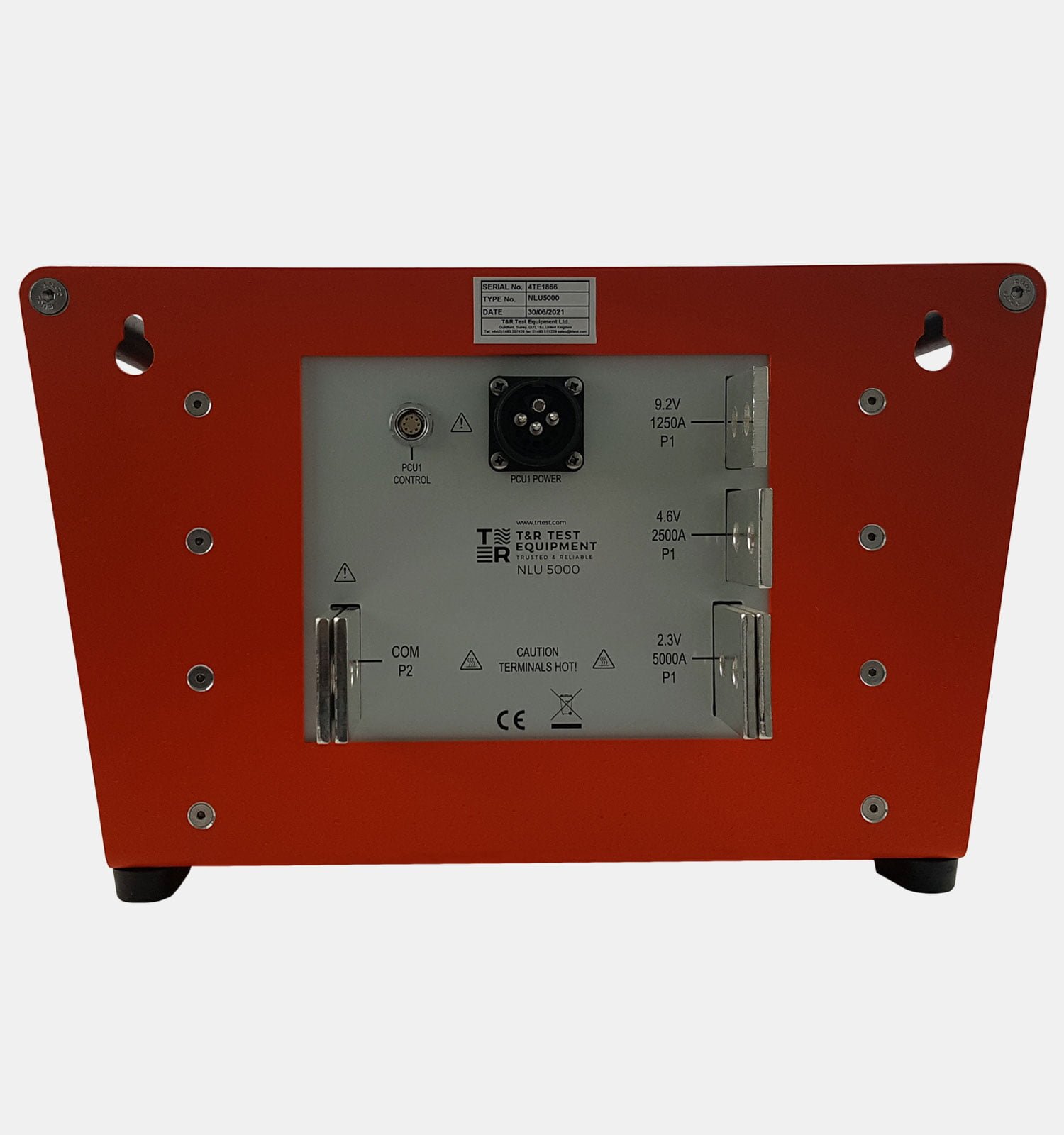

NLU5000 Loading Unit — T&R Test Equipment — Safety & Test Equipment

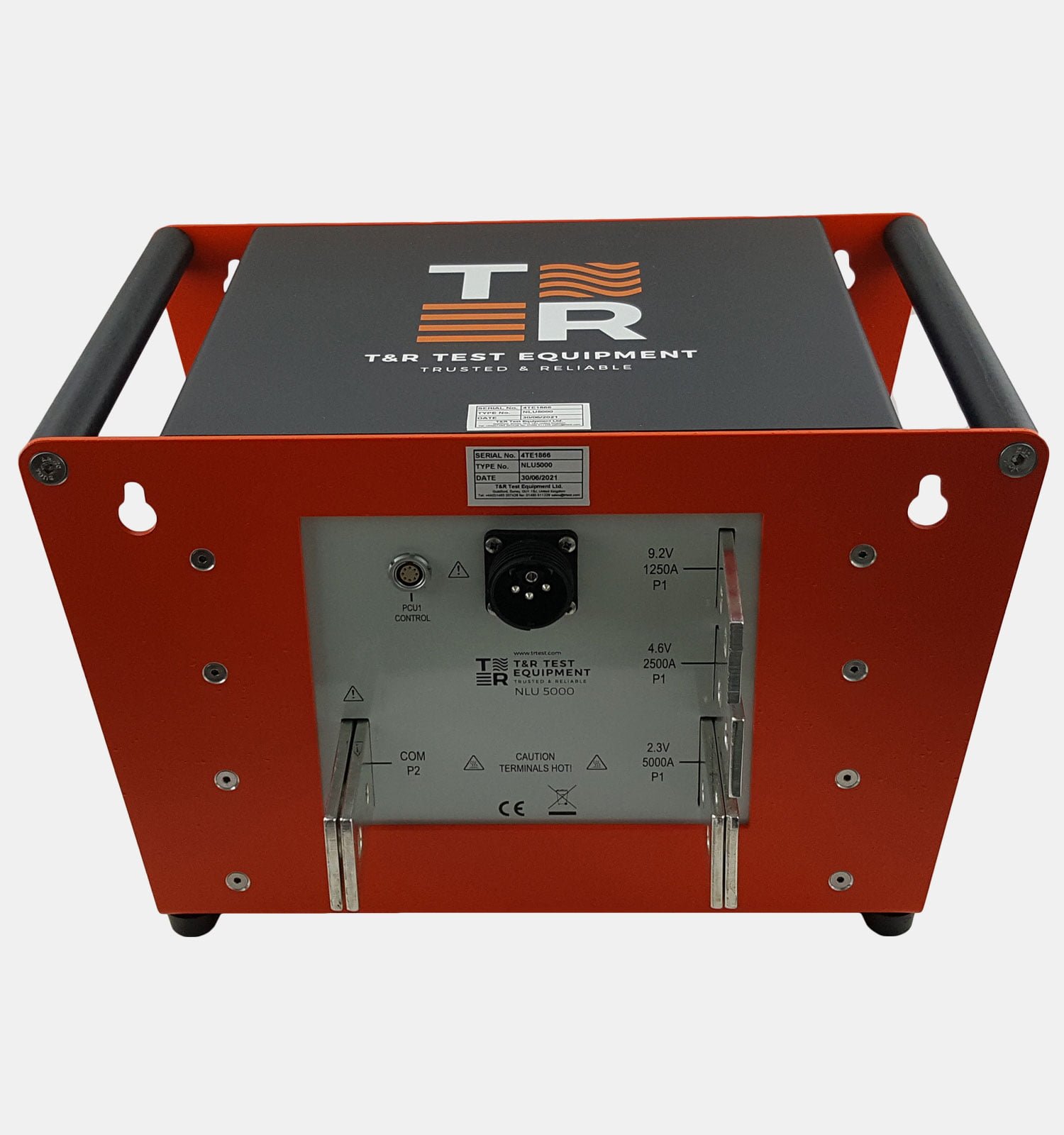

NLU5000 Loading Unit — T&R Test Equipment — Safety & Test Equipment, image 2

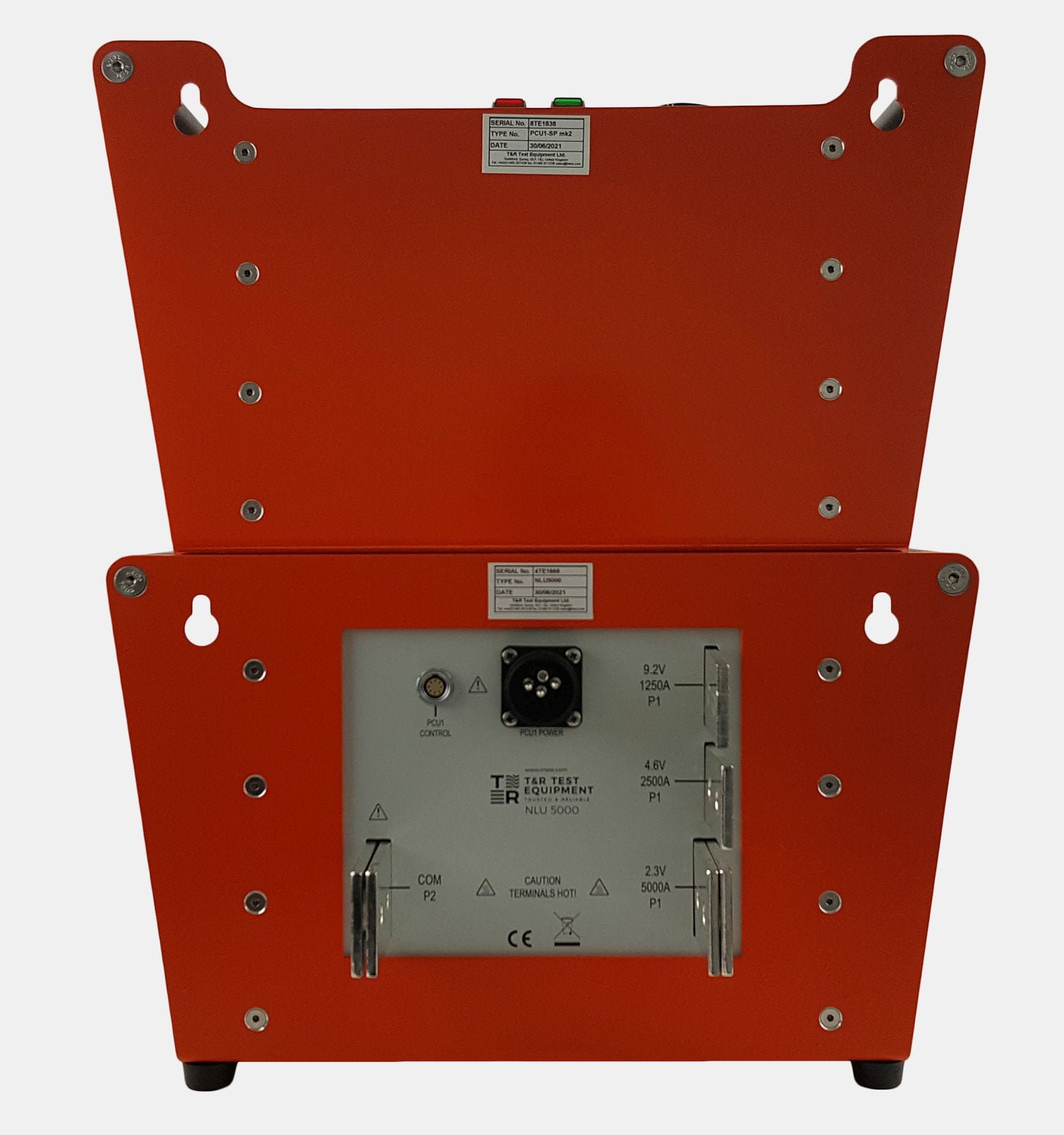

NLU5000 Loading Unit — T&R Test Equipment — Safety & Test Equipment, image 3

Quick facts

Brand
T&R Test Equipment
Part number
NLU5000
Category
Safety & Test Equipment

Product overview

Built for substation commissioning and periodic protection proving.

Specifications

Part Number
NLU5000
Brand
T&R Test Equipment
Weight
60 kg
Dimensions
450 × 275 × 305 mm
Supplied Accessories
User manual Calibration certificate Output screw set 2 x 19mm ring combi spanner

Key features

  • Exceptional versatility and reliability
  • Three output taps for a wide range of load impedances
  • Configurable maximum current: 5000A on the 2.3V range, 2500A on the 4.6V range or 1250A on the 9.2V range
  • Seamless connection to the Control Unit with included interconnect lead
  • Designed to meet the stringent requirements of BS EN61010
  • Duty cycle trip and thermal protection for enhanced safety
