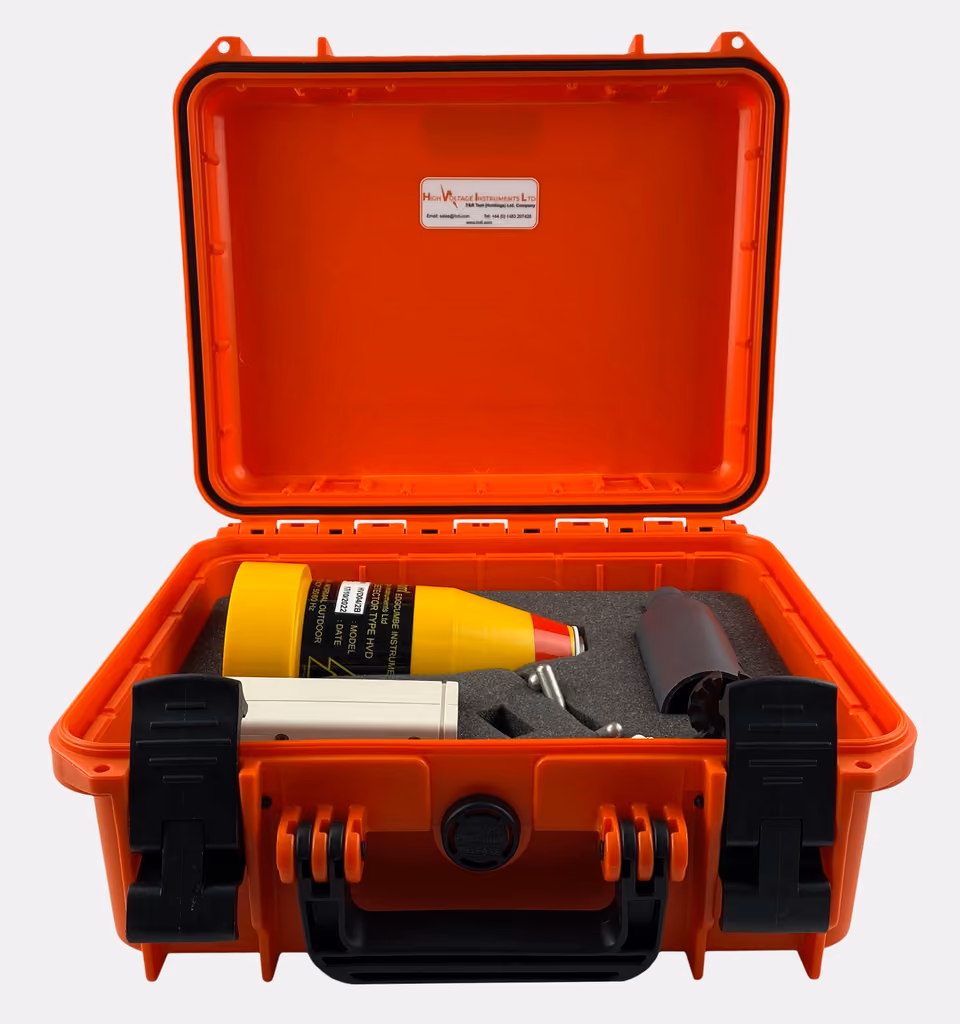

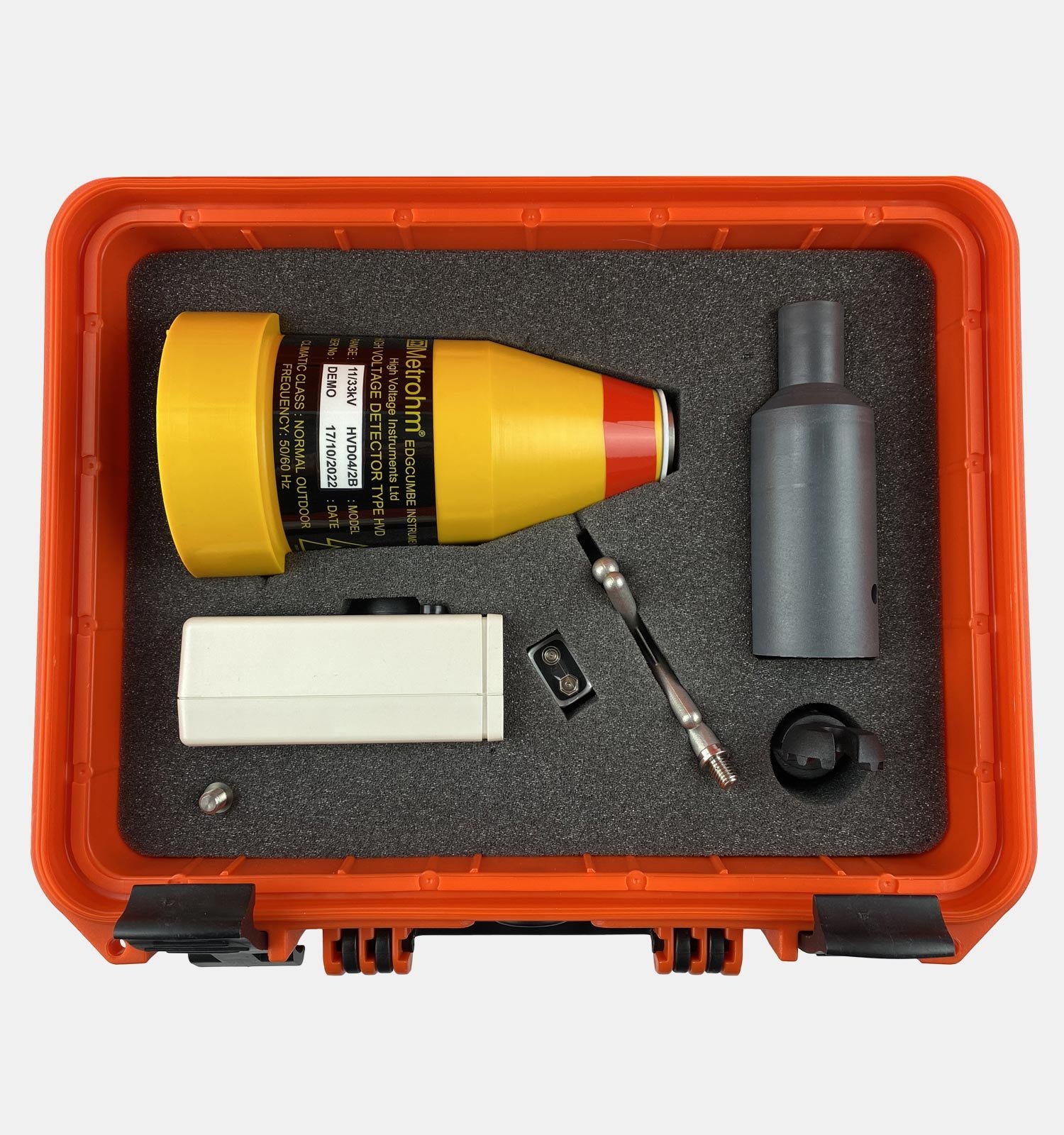

HVD04/2B High Voltage Detector Kit

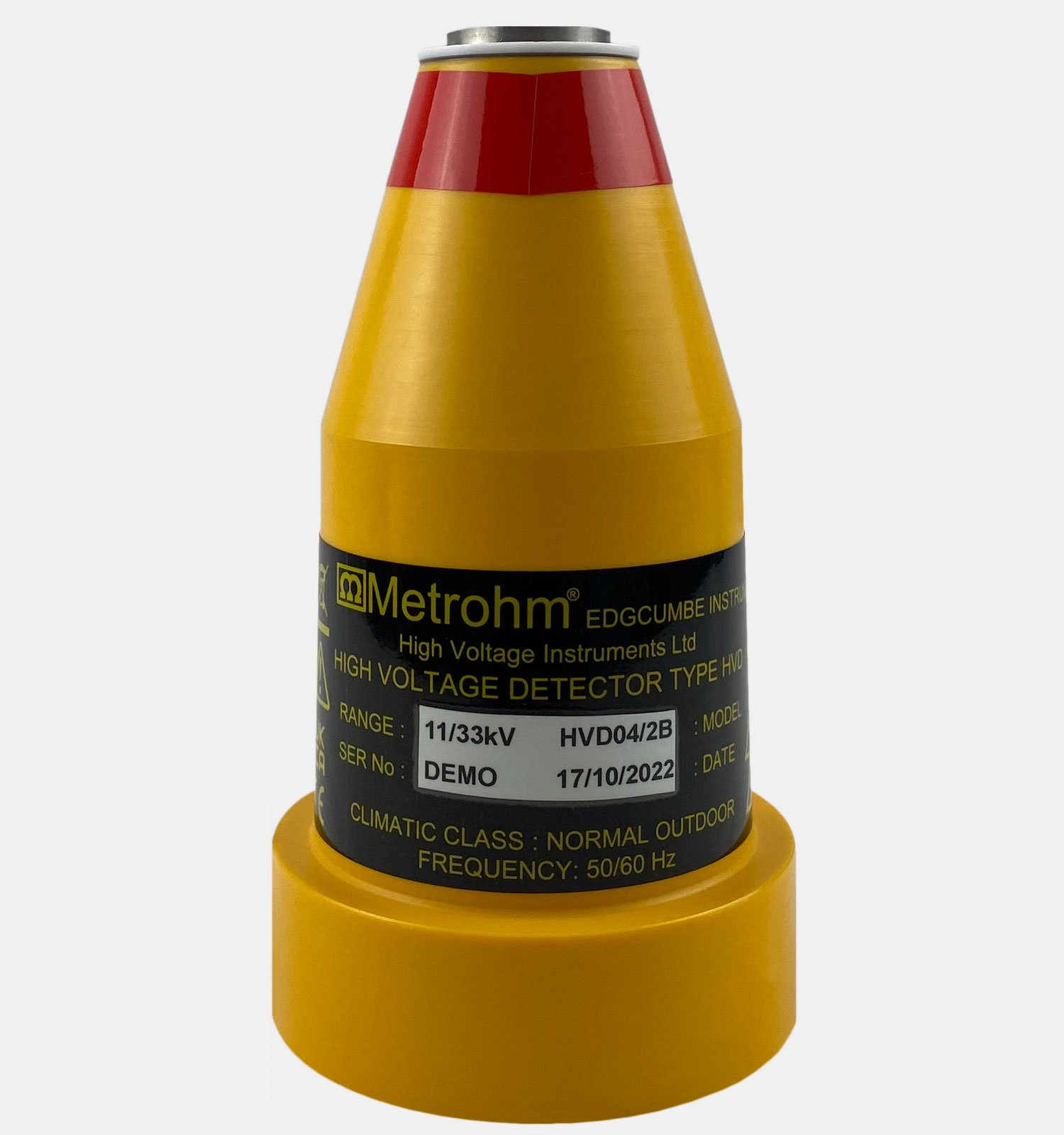

HVD04/2B high voltage detector kit covering 11/33kV with a 2.5kV alarm threshold, for proving HV apparatus dead before work starts.
The HVD04/2B is set for a 11/33kV system range with alarm above 2.5kV, which is what separates it from the rest of the HVD series — pick the model whose band matches the network being worked on.
Alarms automatically above the threshold voltage, responds in under a second, and weighs 0.6 kg in a high-impact ABS body, so it can be carried on every switching job rather than signed out for specific tasks.
Catalog pricing
Request pricing and availability for this item. Z Power Electric can confirm lead time, sourcing options, and part details.
- 30-day returnsOn standard orders
- 24-hour quoteFrom our sourcing team
- Independent sourcingNo territory limits
- Obsolete + backorderSpecialists since day one
Product overview
Proving dead is a safety-critical step before earthing and working on HV apparatus; using a detector rated for the wrong band is the common failure, which is why the range and threshold are stated up front here.
Specifications
- Part Number
- HVD04/2B
- Brand
- T&R Test Equipment
Key features
- Determines whether HV systems are live or dead
- 11/33kV Range and 2.5kV Threshold
- Automatic alarming above threshold voltage as default
- Easy to use and Lightweight (0.6kg)
- Fast response time , less than 1 second
- High Impact ABS body

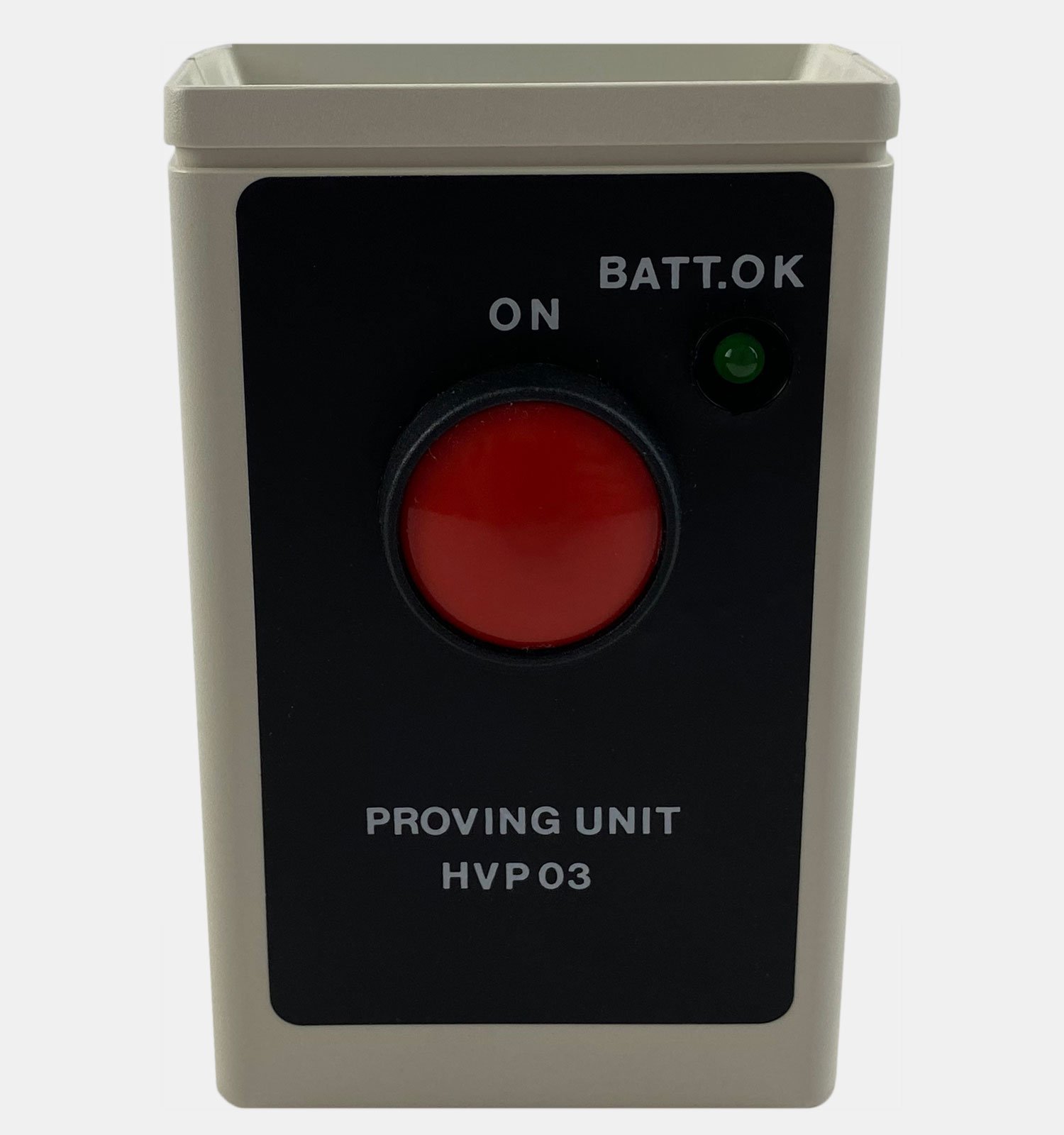

- Self test facility
- Indoor/Outdoor use
- -25°C to +55°C operating temp range
- Shock & drop resistant
