Essex UltraShield Copper Magnet Wire 14 Awg Brown 10 Lbs | UltraShield-14AWG
Essex UltraShield copper magnet wire in 14 AWG size, approximately 10 lbs. Features brown polyurethane insulation for superior electrical and mechanical properties.
The Essex UltraShield copper magnet wire represents premium quality electromagnetic winding wire designed for demanding industrial applications. This 14 AWG solid copper conductor features advanced polyurethane insulation that provides exceptional thermal stability, chemical resistance, and mechanical durability for motor windings, transformers, and other electromagnetic devices.
UltraShield technology delivers superior performance compared to standard magnet wire, offering enhanced cut-through resistance, improved flexibility, and excellent adhesion properties. The brown polyurethane coating provides reliable insulation while maintaining consistent electrical properties across a wide temperature range, making it ideal for high-performance motor and generator applications.
Availability
In stock
This part is in stock at Z Power Electric and ships from our Calimesa, California warehouse.
Catalog pricing
Add this item to your cart or contact Z Power Electric for quantity pricing, lead-time support, and backorder recovery.
- 30-day returnsOn standard orders
- 24-hour quoteFrom our sourcing team
Quick facts
- Brand
- Essex
- Part number
- UltraShield-14AWG
- Condition
- New
- Category
- Wire, Cable & Connectivity
Also searched as
ULTRASHIELD14AWG · ULTRASHIELD 14AWG
Product tags
Product overview

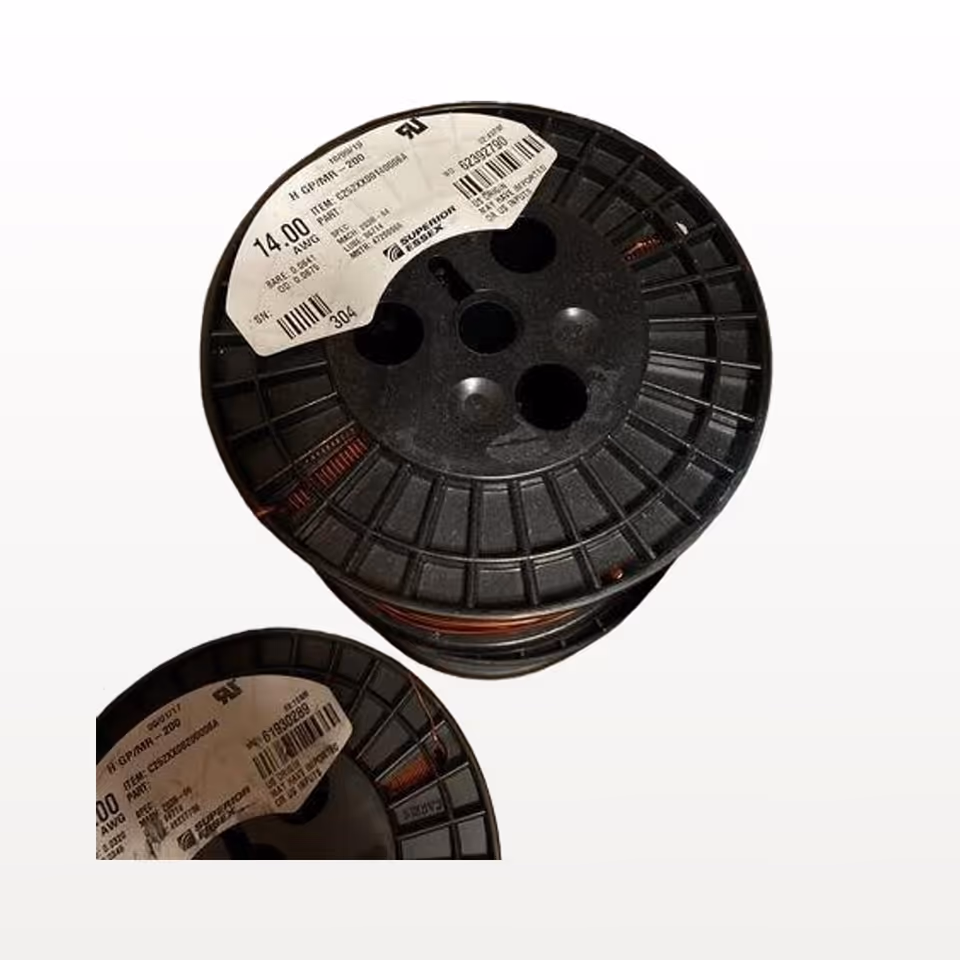

This approximately 10-pound spool provides substantial material for rewinding projects, motor repairs, and electromagnetic coil manufacturing. The solid copper conductor ensures optimal electrical conductivity and heat dissipation, while the precision-applied insulation coating guarantees uniform wire diameter and consistent performance throughout the entire length.
Essex magnet wire meets or exceeds industry standards including NEMA MW-1000 and IEC 60317 specifications, ensuring compatibility with existing designs and reliable long-term performance in industrial environments.
Specifications
- Wire Gauge
- 14 AWG
- Conductor Material
- Solid Copper
- Insulation Type
- Polyurethane (UltraShield)
- Insulation Color
- Brown
- Weight
- Approximately 10 lbs
- Wire Style
- Solid
- Temperature Rating
- 155°C (Class F) - verify
- Voltage Rating
- 600V - verify
- Conductor Diameter
- 0.0641 inches (1.628 mm) - verify
- Overall Diameter
- Approximately 0.070 inches - verify
- Standards Compliance
- NEMA MW-1000, IEC 60317
Key features
- UltraShield polyurethane insulation for enhanced durability
- 14 AWG solid copper conductor for optimal conductivity
- Brown insulation coating for visual identification
- Approximately 10 lb spool for substantial coverage
- Superior cut-through and abrasion resistance
- NEMA MW-1000 and IEC 60317 compliant
Part number breakdown
UltraShield refers to Essex's premium polyurethane insulation technology. The 14 AWG designation indicates the wire gauge size according to American Wire Gauge standards. The brown color coding helps with wire identification during installation and maintenance.
Why buy from Z Power Electric
- Independent Sourcing — We source through independent channels to find parts others can't.
- Quality Assurance — Every part is inspected and verified before shipping.
- Fast Response — 24-hour quote turnaround on most requests.
- Global Reach — Serving maintenance teams and procurement managers worldwide.
Not what you're looking for? We source alternates, discontinued parts, and backordered inventory for urgent maintenance needs.
Request a quoteQuestions about this part
Where can I buy the Essex UltraShield-14AWG?
This part is in stock at Z Power Electric and ships from our Calimesa, California warehouse. Z Power Electric is an independent MRO supplier in Calimesa, California — we buy outside authorized distribution, which is why we can quote parts that a standard distributor shows as unavailable.
Is the Essex UltraShield-14AWG discontinued or obsolete?
Manufacturer lifecycle status changes by part number and region, so we confirm it per quote rather than publishing a claim that may be out of date. Either way it does not change what we do: we source discontinued, obsolete, and backordered parts as a matter of course, and the quote states whether we located the original or are proposing an equivalent.
How long does it take to get a quote on the Essex UltraShield-14AWG?
We respond to every sourcing request within 24 hours, and the quote states a confirmed ship date rather than an estimate. Mark the request urgent if the part is holding up a line.
Is Z Power Electric an authorized Essex distributor?
No — and that is the point. Z Power Electric is an independent supplier, so we are not limited to Essex's authorized channel or its order book. We source through surplus, new-old-stock, and independent inventory, and we state the condition and source channel of every unit on the quote.
