Edward Signaling 5520-R5
Edwards Signaling HORN SIREN 240V60HZ
520-R5 - Edwards Signaling HORN SIREN 240V60HZ
The 5520 and 5521 Series are low current, high performance, high decibel signals which may be coded or used as a continuous alarm.
Availability
In stock
This part is in stock at Z Power Electric and ships from our Calimesa, California warehouse.
Catalog pricing
Add this item to your cart or contact Z Power Electric for quantity pricing, lead-time support, and backorder recovery.
- 30-day returnsOn standard orders
- 24-hour quoteFrom our sourcing team
Quick facts
- Part number
- 5520-R5
- Category
- Industrial MRO
Also searched as
5520R5 · 5520 R5
Product overview

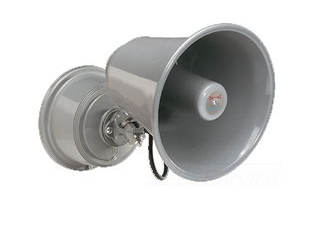

The 5520 Series is designed to function as either a horn or siren by setting an internal, tamper proof switch. The signal's universal Adaptaplate mounts directly on walls, or on any single‑gang opening. Adaptaplate speeds installation by allowing the installer to connect all field wiring to the plate and then finishing the installation by snapping the horn onto the plate. It also mounts to 3 1/4" (83mm), 3 1/2" (89mm), 4" (102mm) square boxes, or equivalent fittings. The signal may be weatherproofed using the Edwards Cat. No. 349 back box.
The 5521 operates as a horn only. It is intended for weatherproof applications and must be mounted on the supplied Edwards Cat. No. 349 backbox using universal Adaptalate (supplied).
The 5520 and 5521 Series are used for schools, factories, lumber yards, and other industrial and commercial installations. The horn signal is often used for timing, paging, and alarms. The siren signal is particularly suitable for high noise areas and often used for alerting an evacuation.
