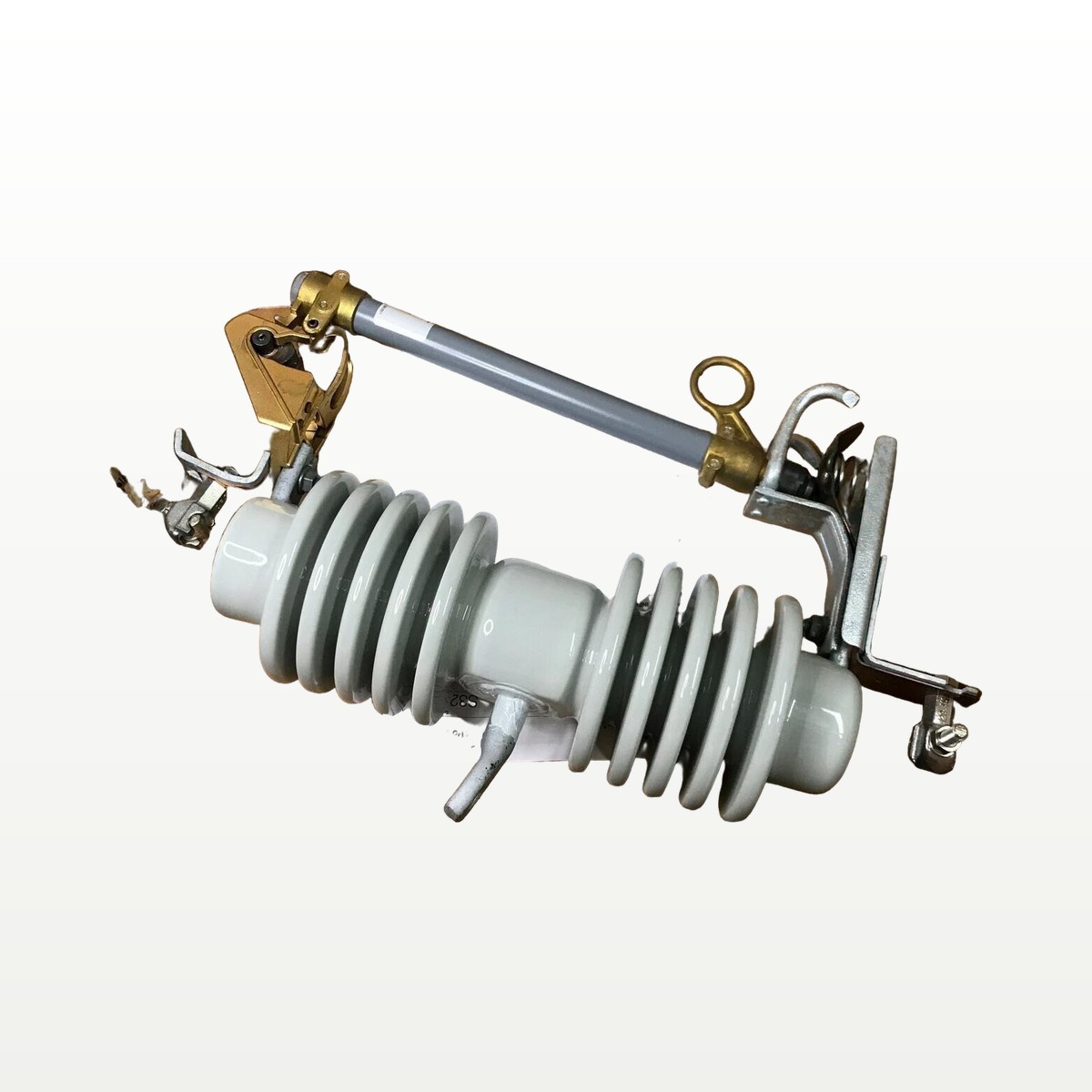

Eaton Cooper Power Series L-Cutout Distribution Switch | L9D1E1A
Eaton Cooper Power Series L9D1E1A single-pole distribution cutout switch for overhead power distribution systems. Features dual element fusing for enhanced fault protection and reliable switching operations in harsh outdoor environments.
The Eaton Cooper Power Series L9D1E1A is a single-pole distribution cutout switch designed for reliable operation in overhead power distribution systems. This fused cutout combines switching and overcurrent protection functions in a single, compact package suitable for pole-mounted installations.
Engineered for harsh outdoor environments, this cutout features robust construction with high-quality insulation and corrosion-resistant materials. The dual element fusing capability provides enhanced fault discrimination and protection coordination within distribution networks. The design ensures reliable operation under various weather conditions while maintaining electrical integrity.
Catalog pricing
Add this item to your cart or contact Z Power Electric for quantity pricing, lead-time support, and backorder recovery.
Product overview
The L9D1E1A cutout is ideal for distribution substations, industrial facilities, and utility applications where dependable switching and protection are critical. Its proven design incorporates decades of Eaton's experience in power distribution equipment, ensuring long service life and minimal maintenance requirements.
Installation and maintenance are simplified through the cutout's user-friendly design, featuring accessible connection points and clear operational indicators. The unit meets or exceeds industry standards for electrical performance, mechanical durability, and environmental resistance.
Specifications
- Configuration
- Single Pole
- Fuse Type
- Dual Element (E)
- Mounting
- Pole Mount
- Voltage Rating
- 15kV class (approximately)
- Current Rating
- 100A (approximately)
- Insulation Level
- Distribution class
- Material
- Porcelain insulator with metal hardware
- Environmental Rating
- Outdoor rated
- Operating Temperature
- -40°C to +85°C (approximately)
- Standards Compliance
- IEEE, ANSI standards
Key features
- Single-pole distribution cutout design
- Dual element fusing for enhanced fault protection
- Weather-resistant construction for outdoor installation
- Corrosion-resistant materials and finishes
- Simplified installation and maintenance
- Industry-standard electrical and mechanical performance
Part number breakdown
L9D1E1A Breakdown:
L9 = Series designation for distribution cutout
D = Single pole configuration
1 = Voltage class indicator
E = Dual element fuse type
1A = Current rating and mounting configuration
