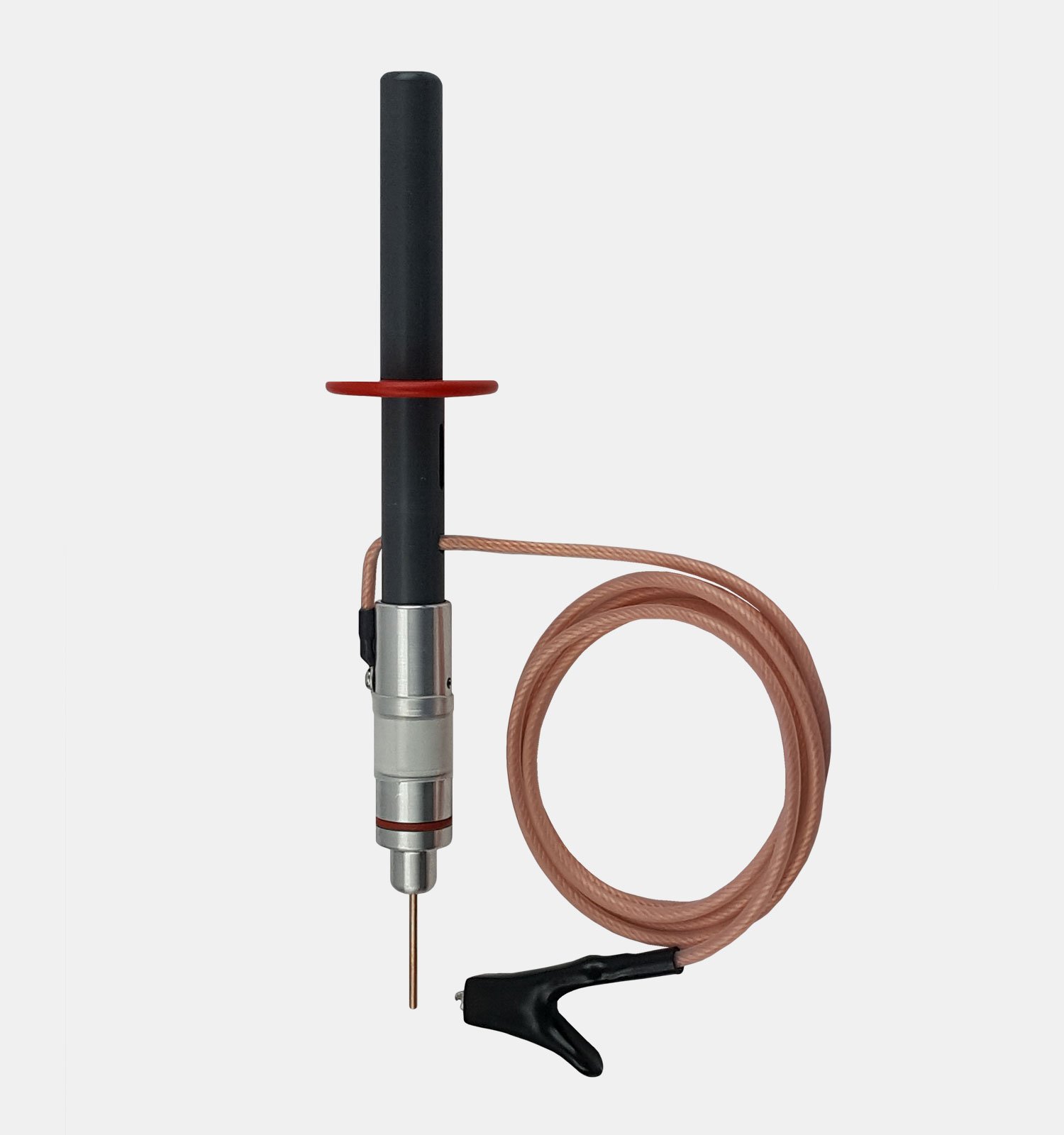

DP5 Discharge Probe

Discharge probe for safely draining residual charge from HV cables after DC testing, the smallest of the DP series.

Discharges high voltage cables once DC testing is complete, so residual charge is drained through a controlled path rather than left in the cable.

Fitted with an earthing hook and a highly flexible clear-silicone-covered earth cable, which keeps the earth connection visible for inspection.

Availability

Backordered — sourced independently

Not on our shelf today. Z Power Electric sources this part through independent, surplus, and new-old-stock channels rather than waiting on the factory queue, and confirms price and lead time within 24 hours.

Catalog pricing

Request quotePricing confirmed by sourcing
Request quote

Request pricing and availability for this item. Z Power Electric can confirm lead time, sourcing options, and part details.

  • 30-day returns
    On standard orders
  • 24-hour quote
    From our sourcing team
Talk to a sourcing expert
Mon - Fri 9:00 AM - 4:30 PM PST
Sat - Sun Closed
DP5 Discharge Probe — T&R Test Equipment — Safety & Test Equipment

Quick facts

Brand
T&R Test Equipment
Part number
DP5
Category
Safety & Test Equipment

Product overview

Supplied as a standard accessory with T&R cable test sets and available separately as a replacement or spare.

Specifications

Part Number
DP5
Brand
T&R Test Equipment
Weight
1 kg
Dimensions
390 mm

Key features

  • 5kV DC Maximum discharge voltage
  • 0.9kJ Maximum discharge energy
  • 48μF Maximum discharge capacitance
  • 10kΩ Resistance
  • 390mm Length
  • Up to 5m long Earth lead
  • 6mm² Earth lead CSA
  • Highly flexible, clear silicone covered earth cable
