DMO200 Standard Leads

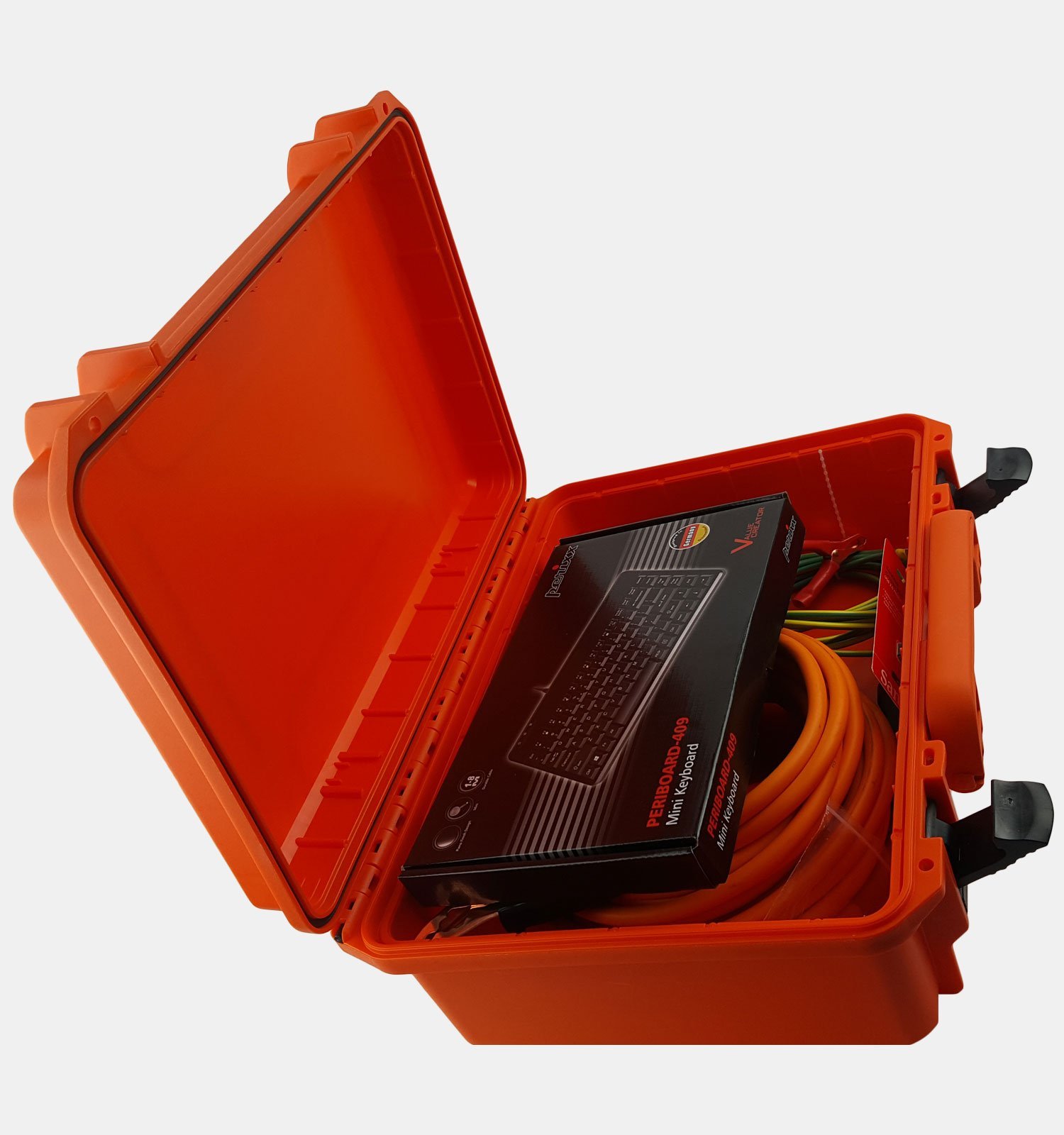

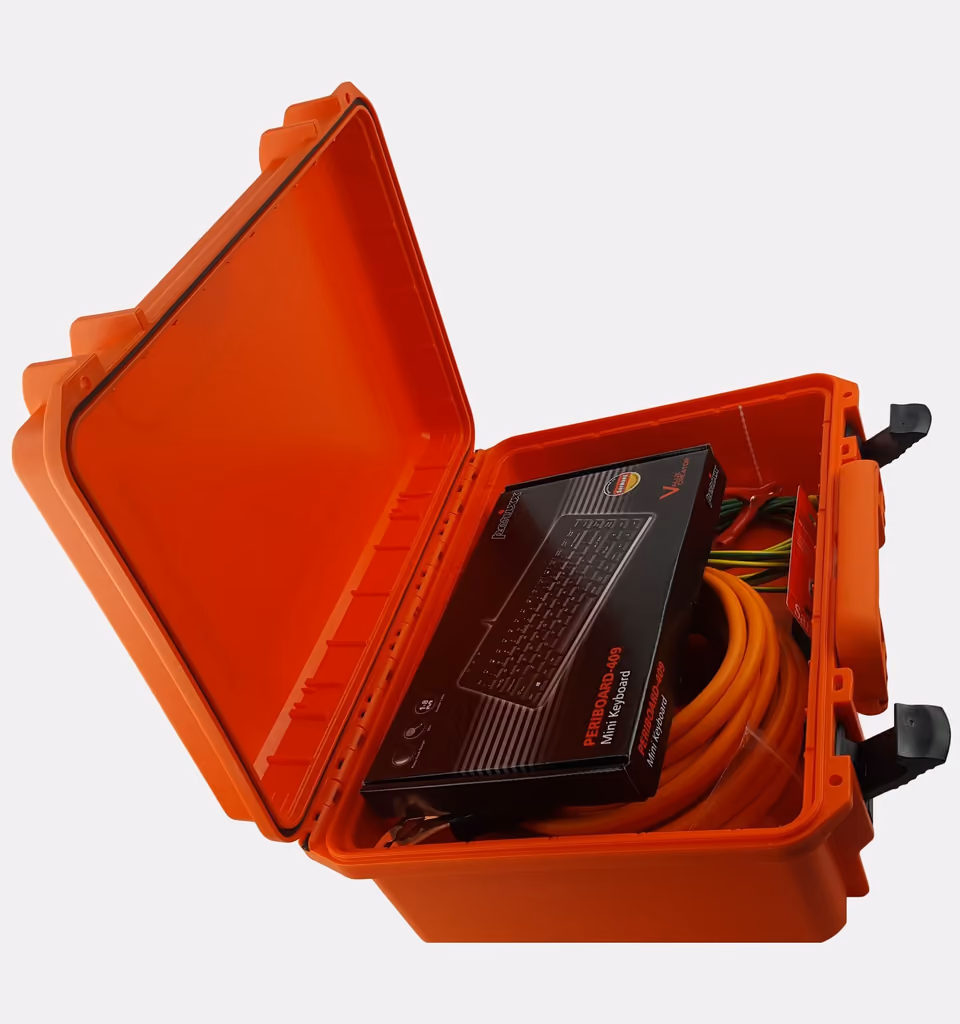

T&R Test Equipment DMO200 standard leads, part A224-0002: two 3 m 200 A output leads with large current clamps and a 3 m voltage sense lead, in an orange Pelican case. Weight 4.4 kg.

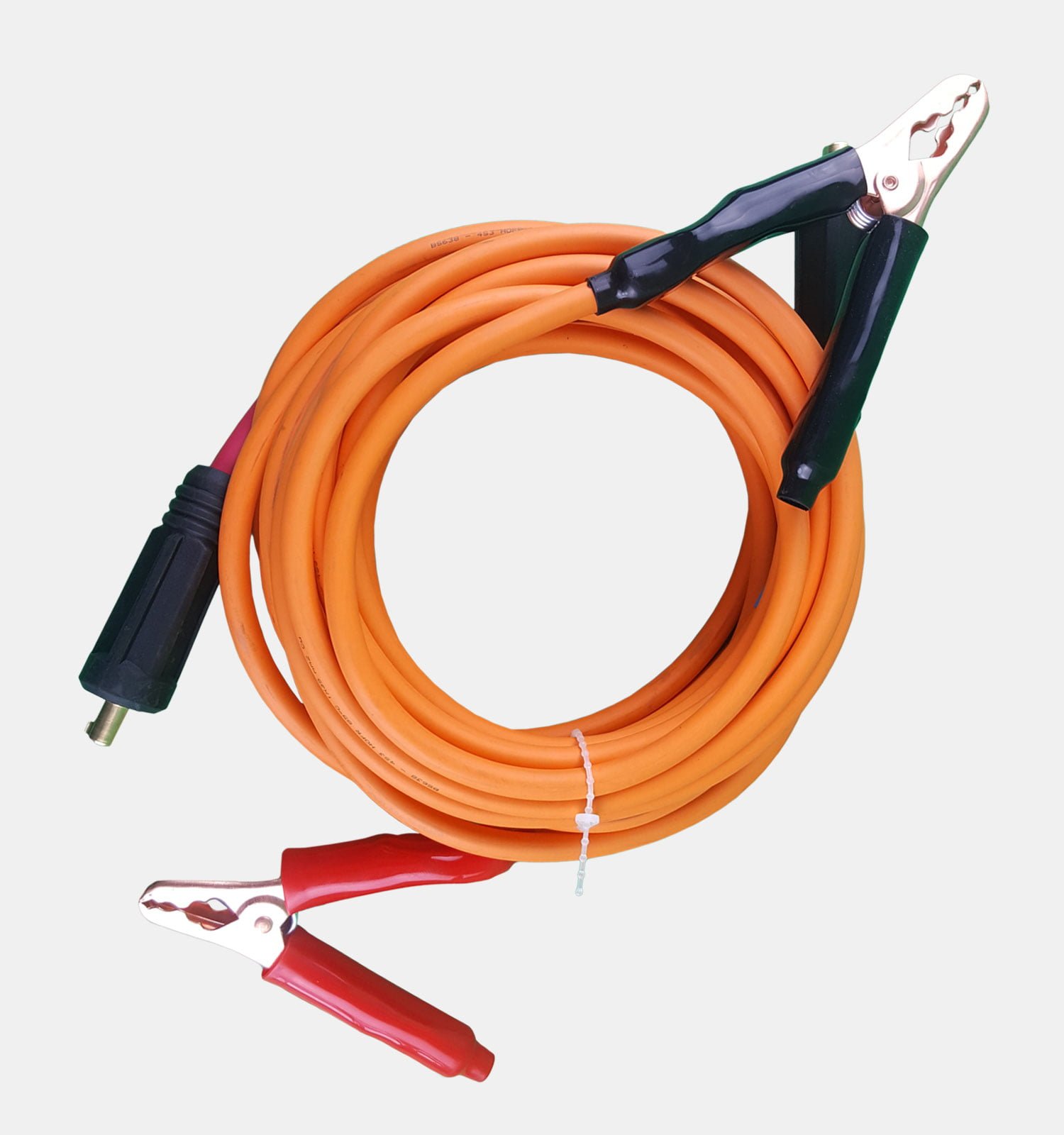

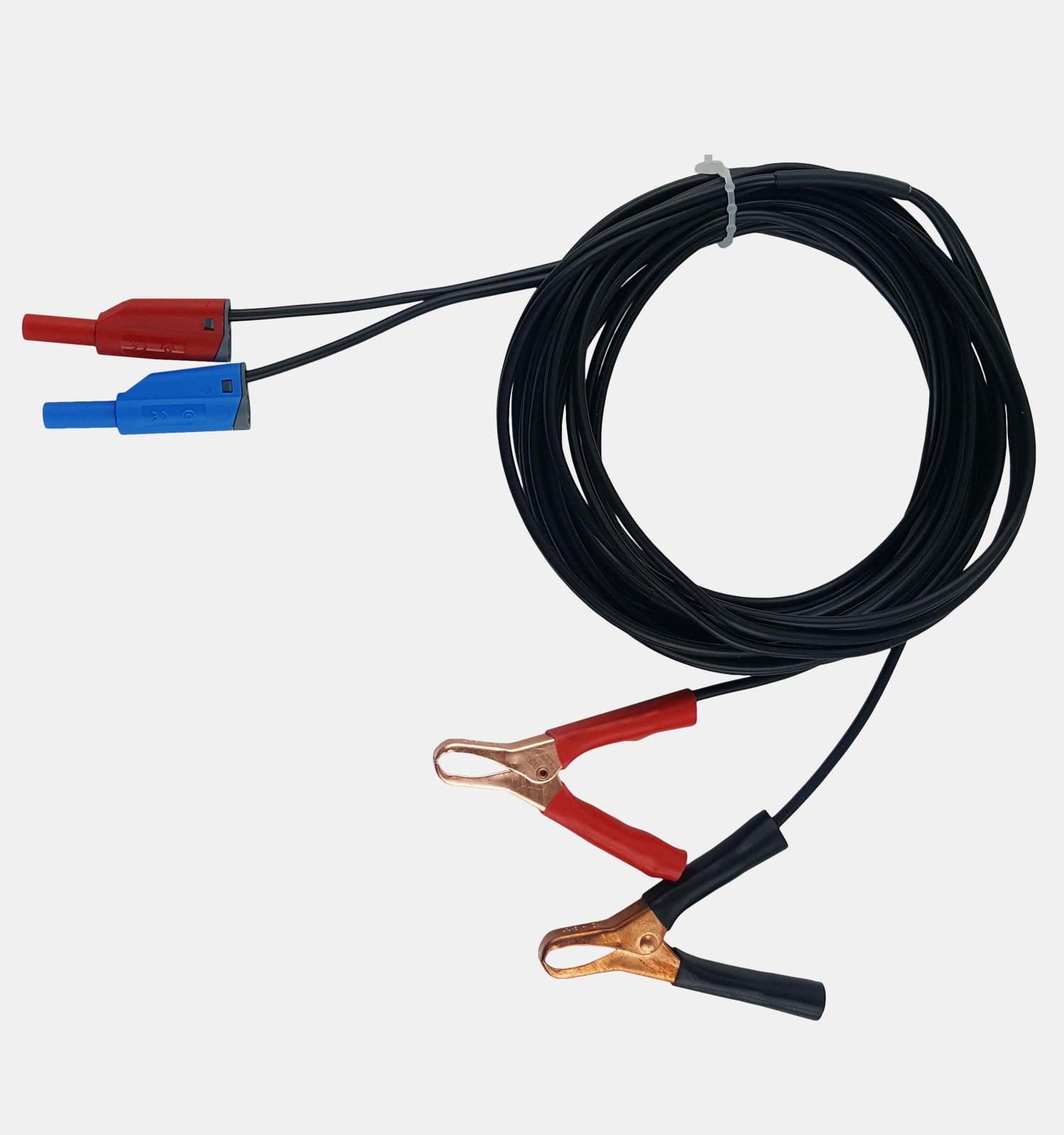

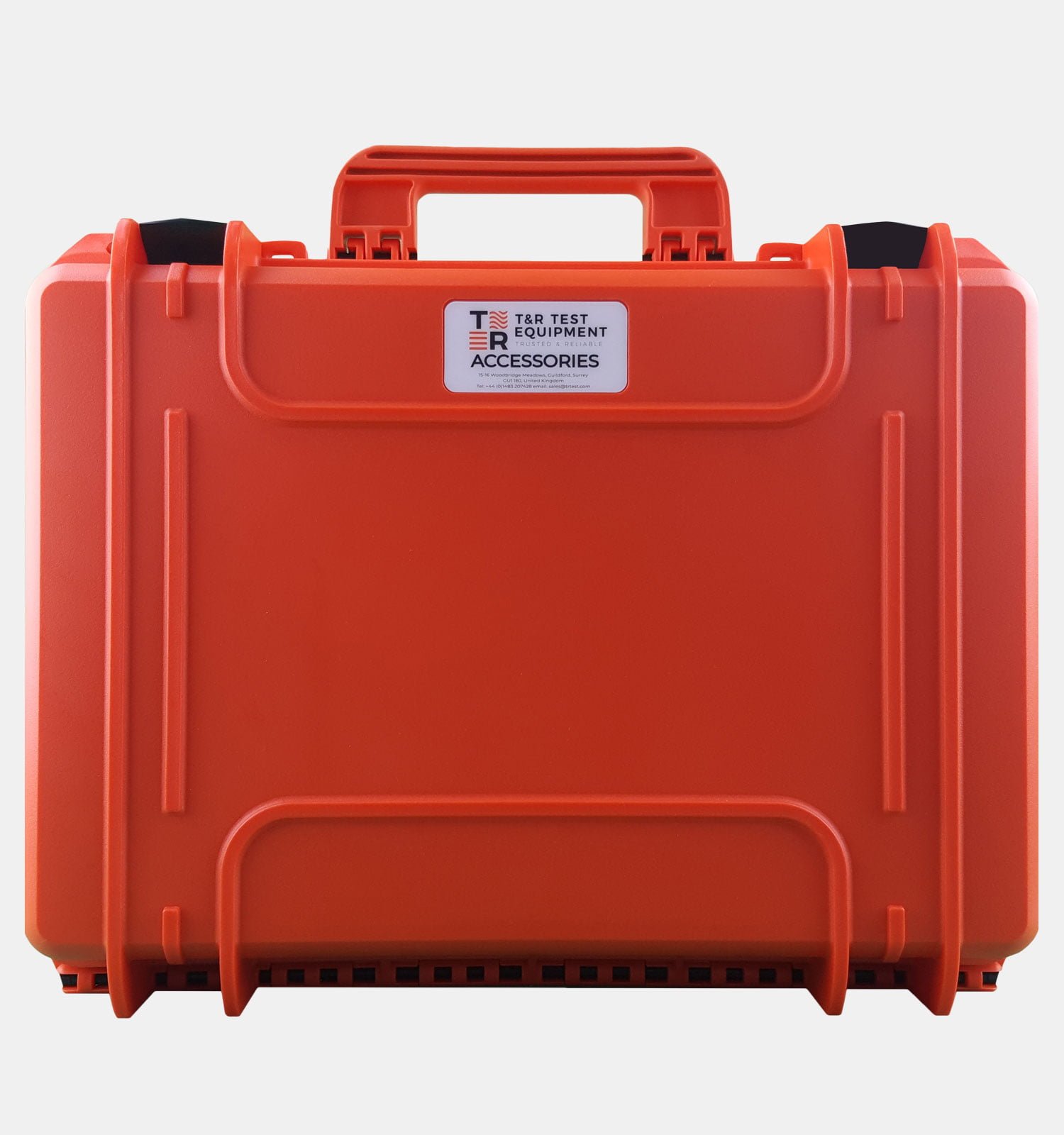

Part A224-0002 is T&R Test Equipment's replacement for the standard leads supplied with the DMO200 digital micro-ohmmeter. The set contains two 3 m output leads with large current clamps, rated 200 A, and one 3 m voltage sense lead, packed in an orange Pelican transport case. The complete set weighs 4.4 kg.

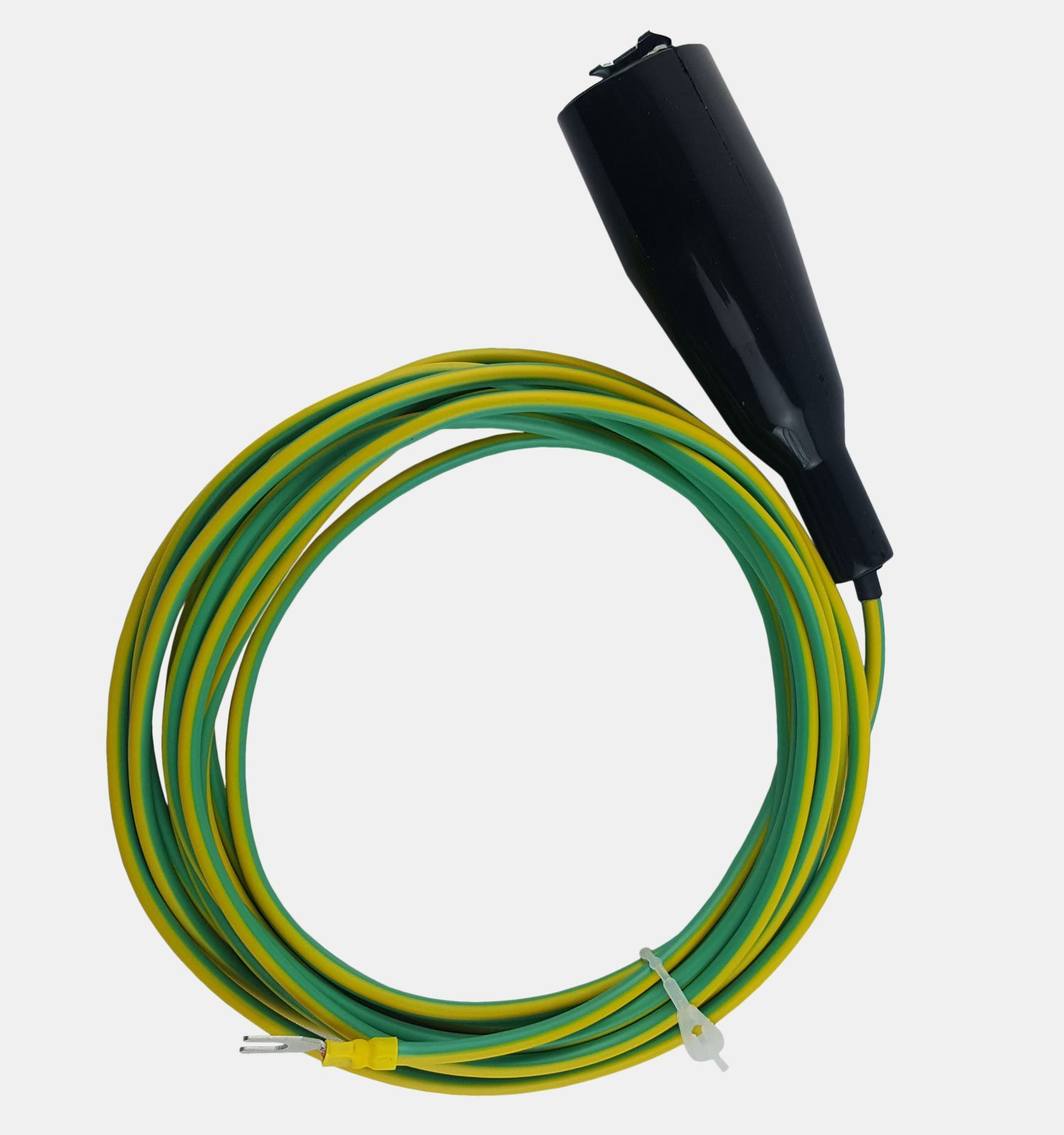

The DMO200 injects 1 to 200 A DC to measure contact resistance down to 0.1 µΩ resolution on circuit breakers, switch panels, isolators and busbar joints. T&R states these leads cover all of the DMO200's testing applications. The earth lead is a separate part (A000-0005), and longer extension lead sets are offered for working at a distance from the test object.
Availability
Backordered — sourced independently
Not on our shelf today. Z Power Electric sources this part through independent, surplus, and new-old-stock channels rather than waiting on the factory queue, and confirms price and lead time within 24 hours.
Catalog pricing
Request pricing and availability for this item. Z Power Electric can confirm lead time, sourcing options, and part details.
- 30-day returnsOn standard orders
- 24-hour quoteFrom our sourcing team
Quick facts
- Brand
- T&R Test Equipment
- Part number
- A224-0002
- Category
- Wire, Cable & Connectivity
Also searched as
A2240002 · A224 0002
Specifications
- Part Number
- A224-0002
- For use with
- T&R DMO200 digital micro-ohmmeter
- Output leads
- 2 x 3 m with large current clamps
- Sense lead
- 1 x 3 m voltage sense lead
- Current rating
- 200 A
- Case
- Orange Pelican transport case
- Weight
- 4.4 kg
Questions about this part
Where can I buy the T&R Test Equipment A224-0002?
Not on our shelf today. Z Power Electric sources this part through independent, surplus, and new-old-stock channels rather than waiting on the factory queue, and confirms price and lead time within 24 hours. Z Power Electric is an independent MRO supplier in Calimesa, California — we buy outside authorized distribution, which is why we can quote parts that a standard distributor shows as unavailable.
Is the T&R Test Equipment A224-0002 discontinued or obsolete?
Manufacturer lifecycle status changes by part number and region, so we confirm it per quote rather than publishing a claim that may be out of date. Either way it does not change what we do: we source discontinued, obsolete, and backordered parts as a matter of course, and the quote states whether we located the original or are proposing an equivalent.
How long does it take to get a quote on the T&R Test Equipment A224-0002?
We respond to every sourcing request within 24 hours, and the quote states a confirmed ship date rather than an estimate. Mark the request urgent if the part is holding up a line.
Is Z Power Electric an authorized T&R Test Equipment distributor?
No — and that is the point. Z Power Electric is an independent supplier, so we are not limited to T&R Test Equipment's authorized channel or its order book. We source through surplus, new-old-stock, and independent inventory, and we state the condition and source channel of every unit on the quote.
